9.14 ADF Side Cover R
(1) Remove the cup B M3x10 Taptite screw.
(2) Release the Hook from underneath the ADF unit, and remove the ADF side cover R
from the ADF unit.

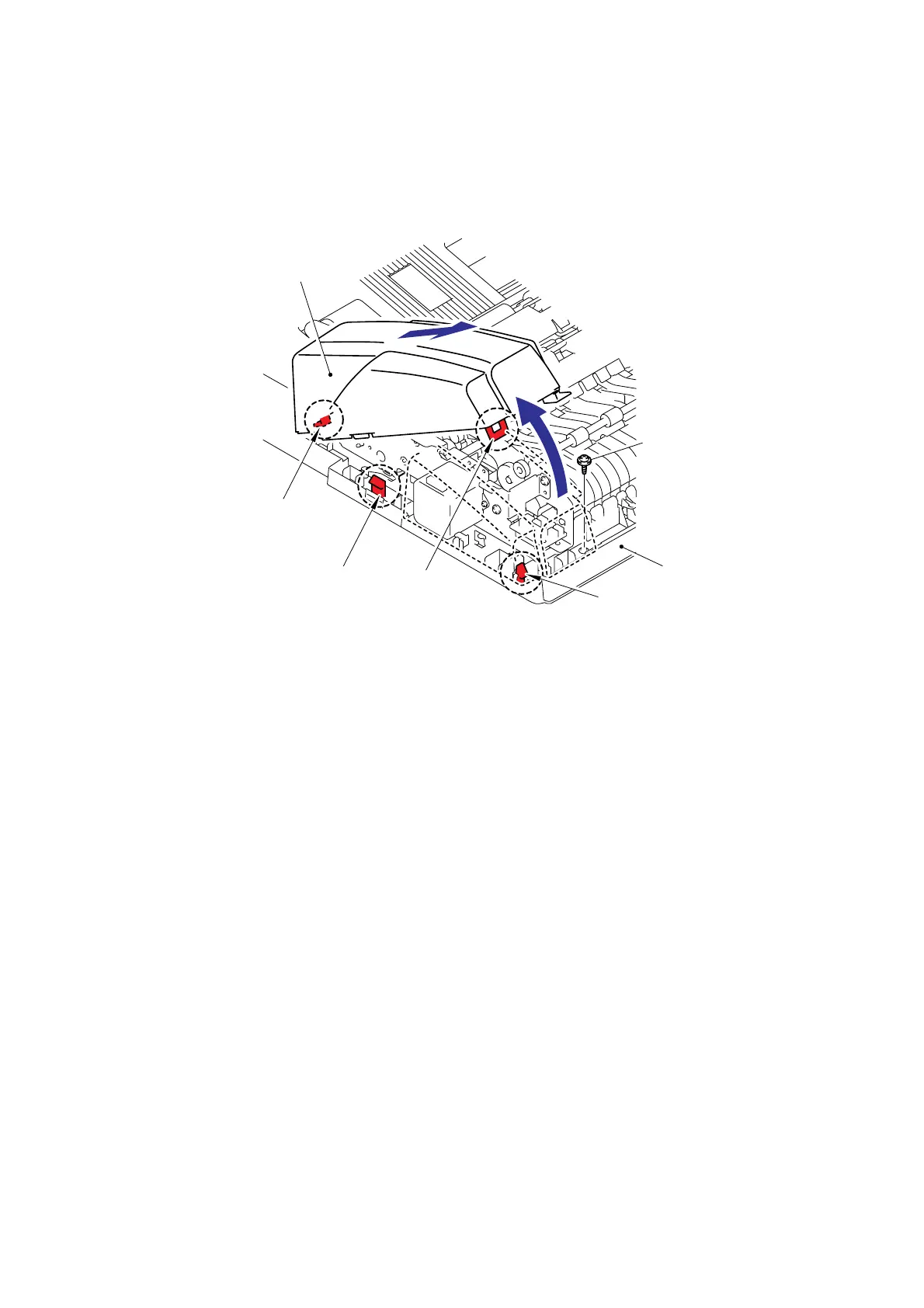

Fig. 5-42
ADF side cover R
1
2
ADF unit
Hook
Hook
Hook
<Back side>
Latch
Taptite cup B M3x10
