9.35 Flap A ASSY (For the models with the DX only)/
Flap A (For the models with out the DX only)
(1) Release the Hooks of the Conductive bushing A to remove the Conductive bushing A.
(2) Remove the Bushing from the ADF chute ASSY, and remove the Flap A ASSY or Flap A
from the ADF chute ASSY.

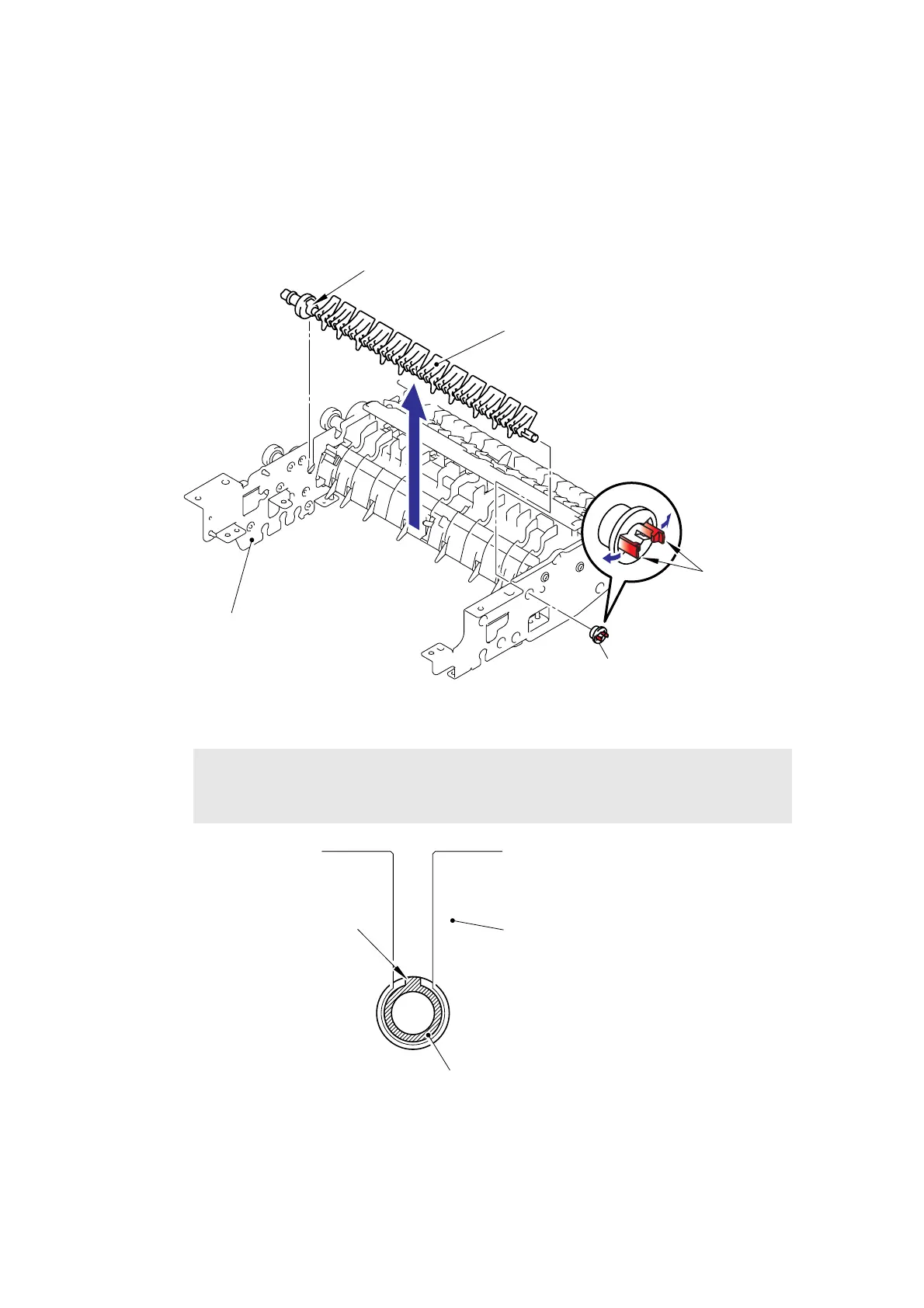

Fig. 5-79
Fig. 5-80
Assembling Note:
• When assembling the Flap A ASSY or Flap A, assemble the Bushing with aligning
the Boss of the Bushing with the notch on the ADF chute ASSY.
Bushing
Flap A ASSY/Flap A
Hooks
Conductive bushing A
ADF chute ASSY
ADF chute ASSY
Boss
Bushing
