Brother DCP 8085DN

5-107
Confidential
9.66 Main Shield Plate ASSY
(1) Remove the Insulation sheet.
(2) Pull out the Flat cable from the Ferrite core.
(3) Remove the Main PCB sheet.

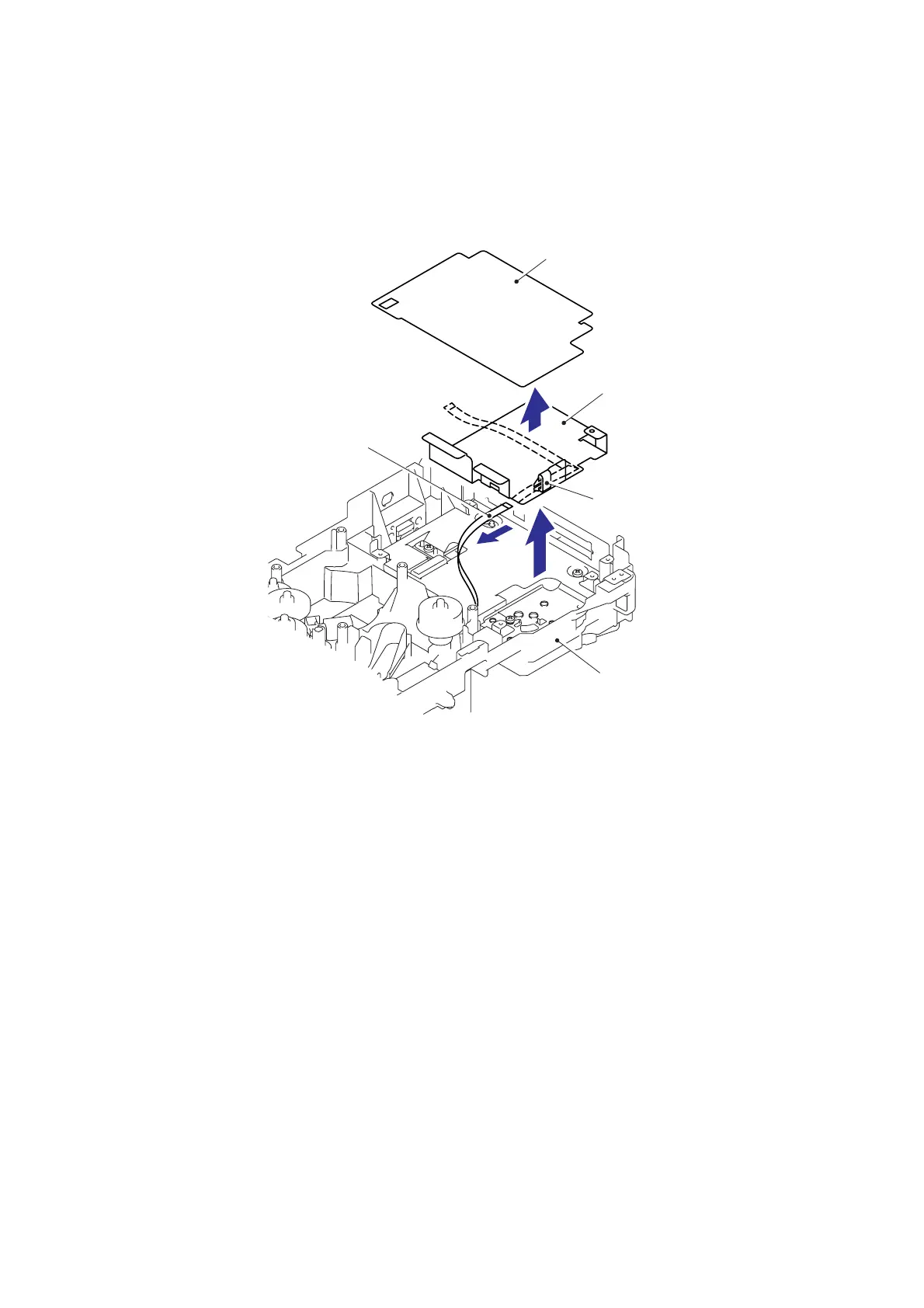

Fig. 5-136
Insulation sheet
Relay front PCB ASSY
(Flat cable)
Ferrite core
Frame L
Main PCB sheet
