Brother DCP 8085DN

5-84
Confidential

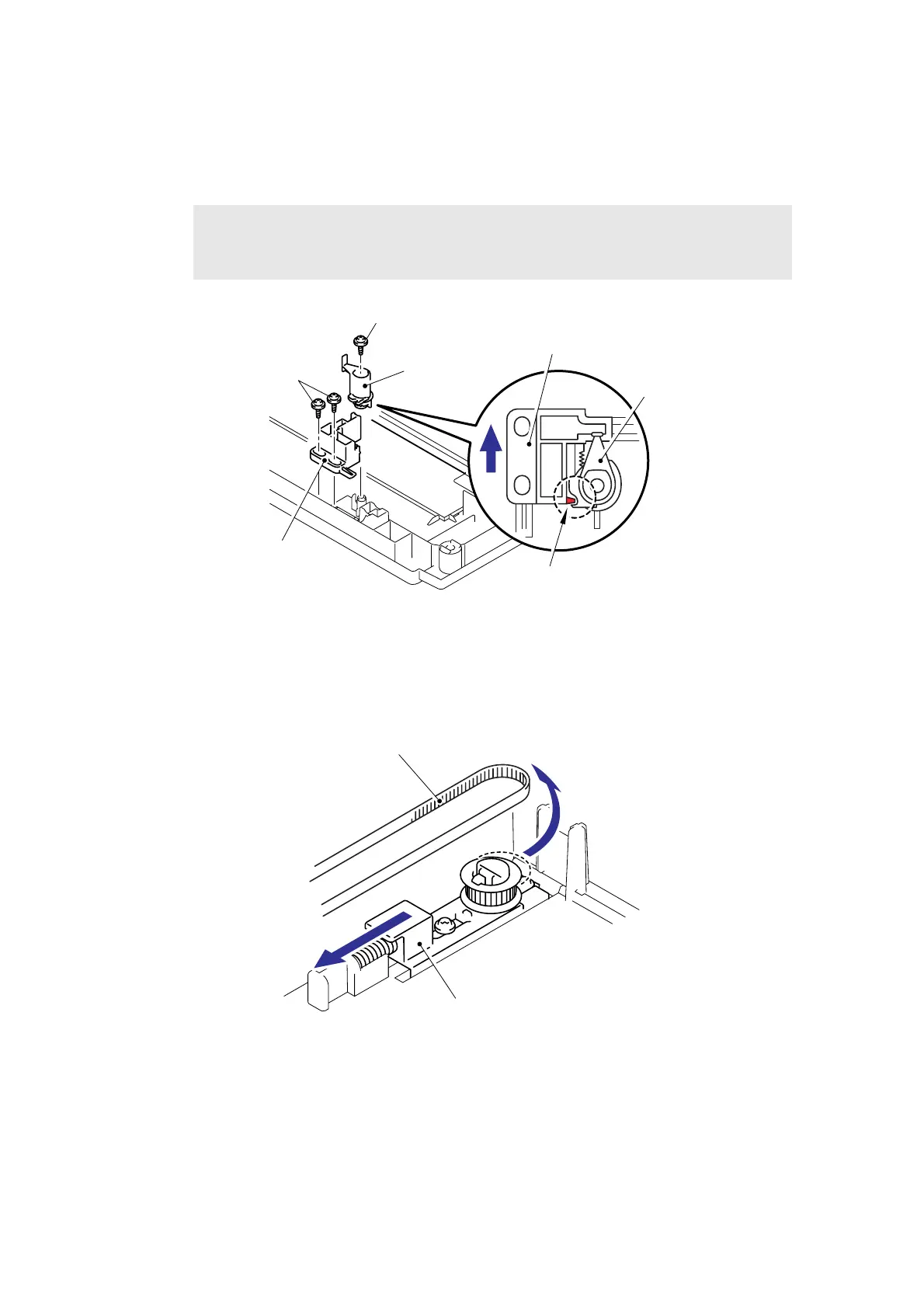

9.48 Lock Lever B/ Lock Lever ASSY
(1) Remove the cup B M3x6 Taptite screw, and then remove the Lock lever B.
(2) Remove the two cup B M3x6 Taptite screws, and then remove the Lock lever ASSY.
Fig. 5-99
9.49 CCD Module
(1) Loosen the two B M3x8 Taptite screws, push the Pulley ASSY to the direction of the
arrow 1a and remove the Belt.
Fig. 5-100
Assembling Note:
• After moving the Lock lever ASSY to "A" direction, assemble "B" of the Lock lever B
that is to the direction of the top cover rib in touch.
Taptite B M3x6
Taptite B M3x6
Lock lever ASSY
Lock lever ASSY
Lock lever B
Lock lever B
"A"
"B"
Belt
1a
1b
Pulley ASSY
