Brother DCP 8085DN

5-8
Confidential
5. LUBRICATION

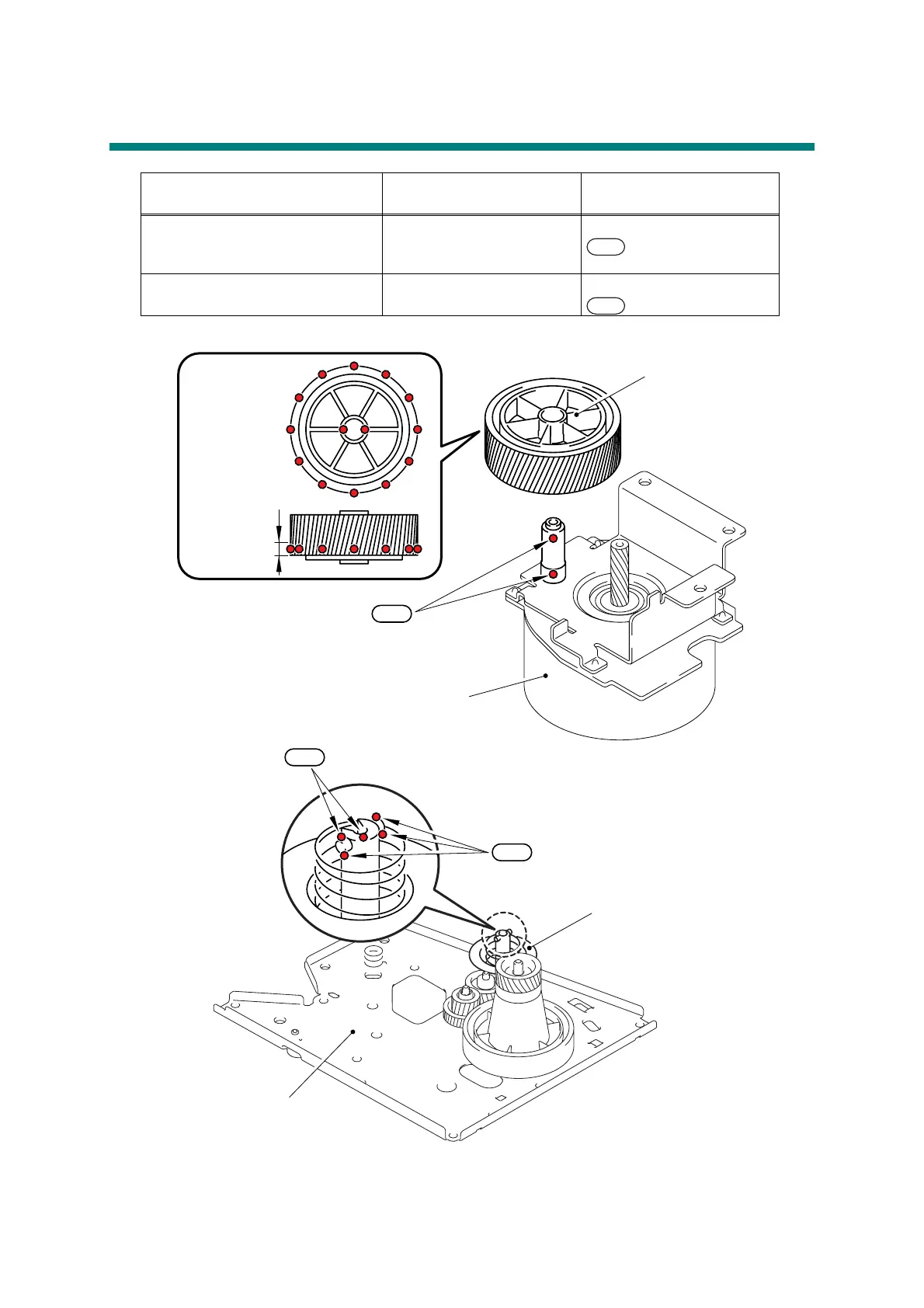

Fig. 5-2
The kind of the lubricating oil
(Maker name)
Lubrication point Quantity of labrication
BG-MU
(Kanto Kasei)
Dev gear 37R joint drive
Main motor ASSY
Drum gear 82R
2mm dia. ball
EM-D110 (MOLYKOTE) Separation pad 2mm dia. ball
BG2
EM2
Apply grease
on the cogs
of the motor
side
Main motor ASSY
Gear 82R
BG2
BG2
BG2
DEV gear 37R joint drive
Gear plate calking ASSY
* BG2: KANTO KASEI BG- MU (2 mm dia. Ball)
