Brother DCP 8085DN

5-88
Confidential

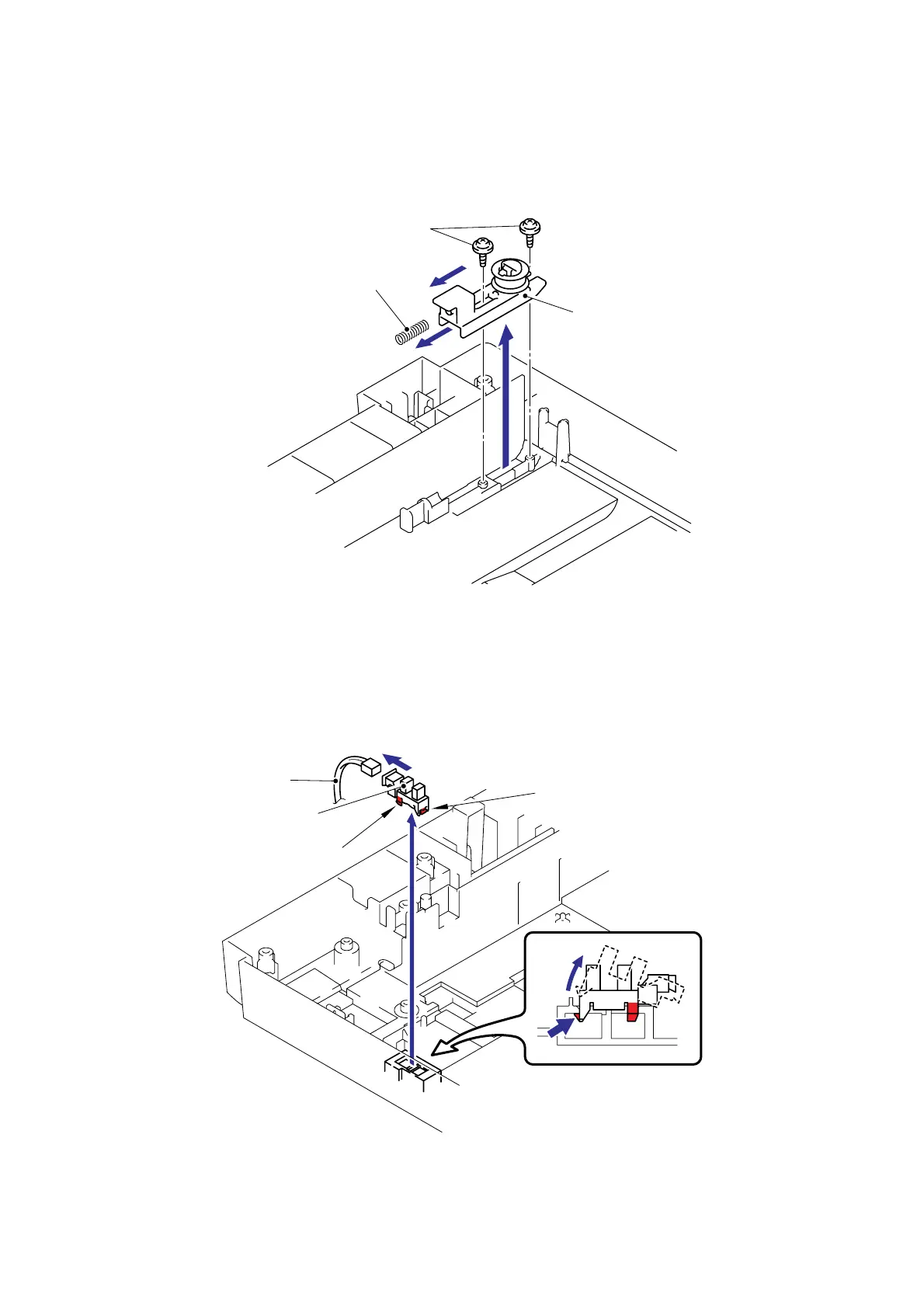

9.52 Pulley ASSY
(1) Remove the two B M3x6 Taptite screws, and then remove the Pulley ASSY.
(2) Remove the Pulley spring.
Fig. 5-107
9.53 Photo Interrupter
(1) Release the Hooks and remove the Photo interrupter.
(2) Disconnect the Connector from the Photo interrupter.
Fig. 5-108
Pulley ASSY
Pulley spring
A
1
2
<Back side>
Taptite B M3x6
2
1
Connector
Photo interrupter
Hook
Hook
<Back side>
