Brother DCP 8085DN

5-78
Confidential
9.42 Document Cover Sensor
(1) Disconnect the Connector from the Document cover sensor.
(2) Pull the Document cover sensor downwards to remove it from the Document cover LGL
while pressing the Hook of the Document cover sensor.

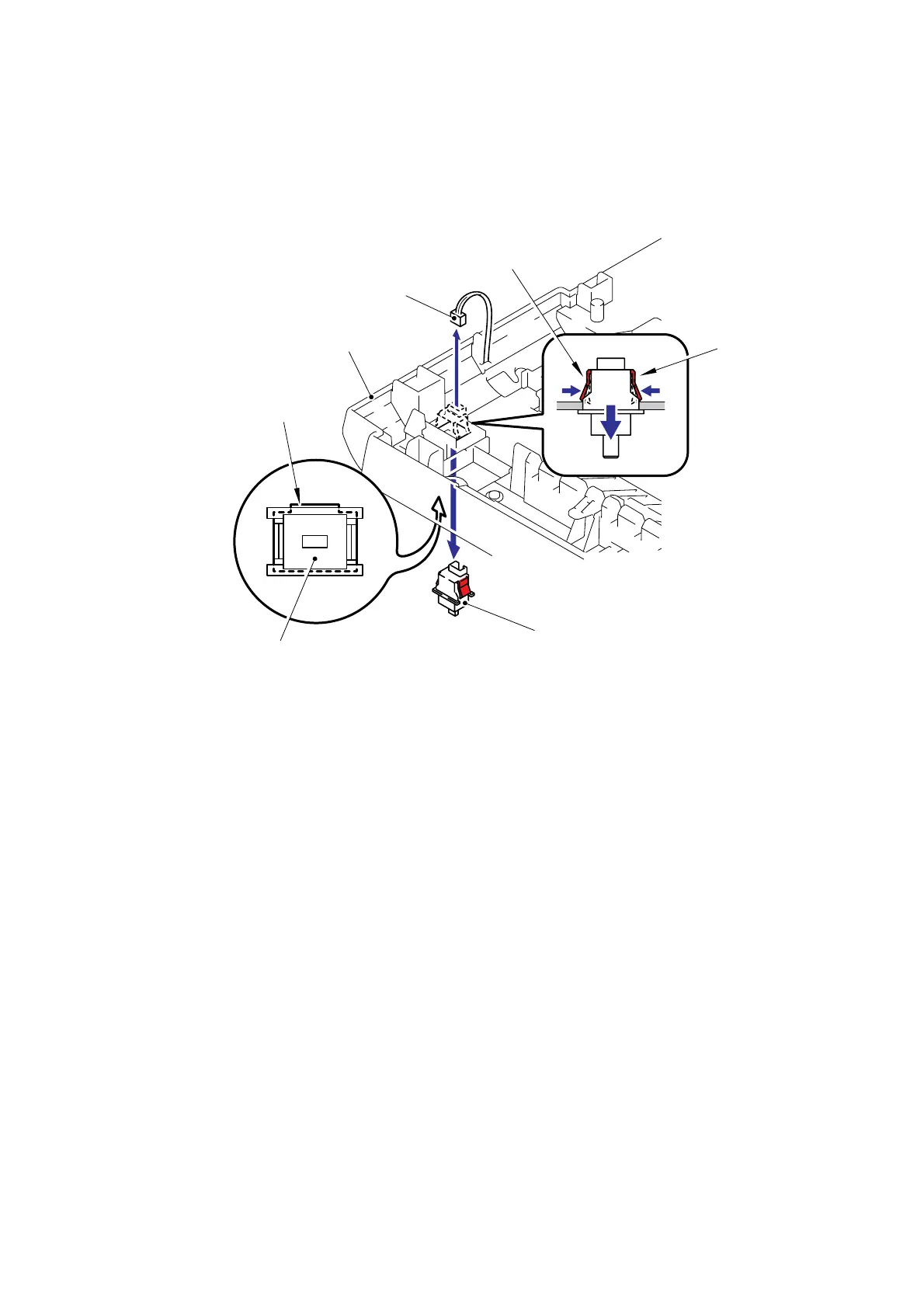

Fig. 5-91
Hook
Hook
Connector
Document cover LGL
Boss
Document cover sensor
Document cover sensor
22
2
2
1
<Back side>
