Brother DCP 8085DN

5-54
Confidential

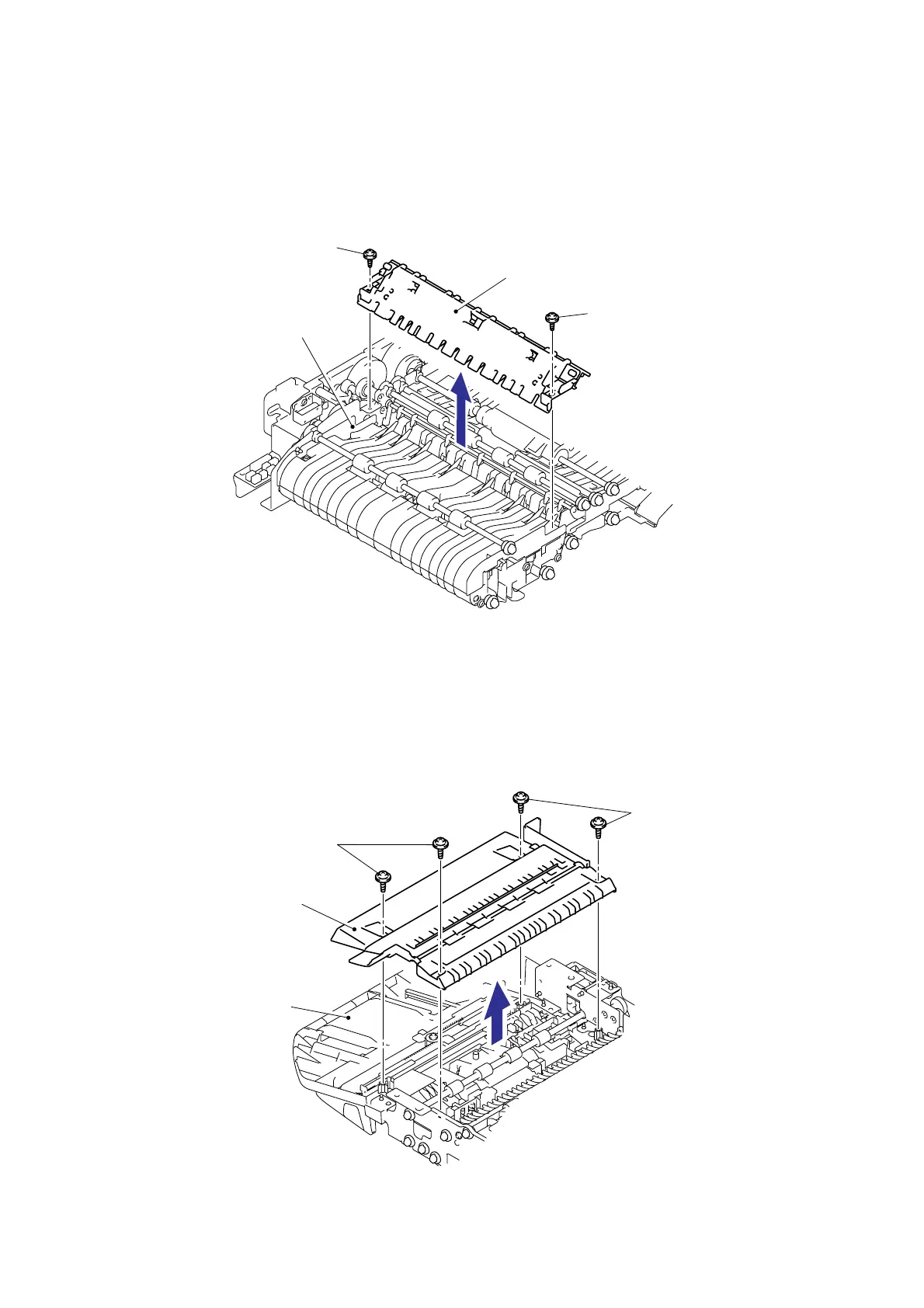

9.16 SB Chute ASSY (For the models with the DX only) / SX Chute
(For the models with out the DX only)
(1) Remove the two cup S M3x8 Taptite screws.
(2) Remove the SB chute ASSY or SX chute from the ADF chute ASSY.
Fig. 5-47
9.17 Exit Chute Cover ASSY
(1) Turn the ADF chute ASSY upside down and remove the four cup B M3x10 Taptite
screws.
(2) Remove the Exit chute cover ASSY from the ADF chute ASSY.
Fig. 5-48
Taptite cup S M3x8
ADF chute ASSY
Taptite cup S M3x8
<Front side>
SX chute
Taptite cup B M3x10
Exit chute cover ASSY
ADF chute ASSY
<Front side>
Taptite cup B M3x10
