Brother DCP 8085DN

5-69
Confidential

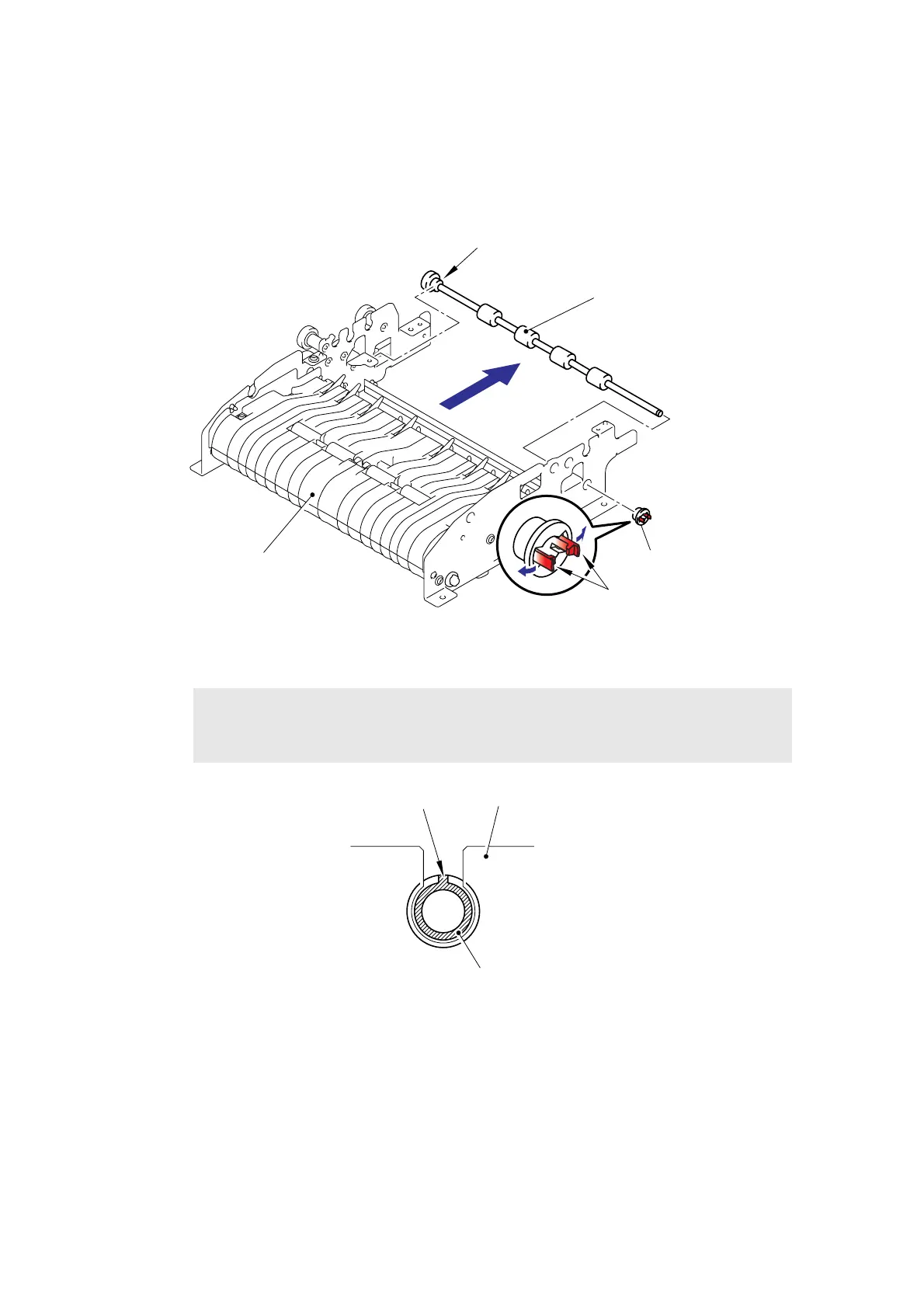

9.32 Exit Roller ASSY
(1) Release the Hooks of the Conductive bushing A to remove the Conductive bushing A.
(2) Remove the Bushing from the ADF chute ASSY, and remove the Exit roller ASSY from
the ADF chute ASSY.
Fig. 5-73
Fig. 5-74
Assembling Note:
• When assembling the Exit roller ASSY, assemble the Bushing with aligning the
Boss of the Bushing with the notch on the ADF chute ASSY.
Bushing
Exit roller ASSY
Conductive bushing A
Hooks
<Front side>
ADF chute ASSY
Boss ADF chute ASSY
Bushing
