5-98
Confidential
9.61 USB HOST PCB ASSY
(1) Disconnect the connector of the USB HOST harness ASSY from the Main PCB.

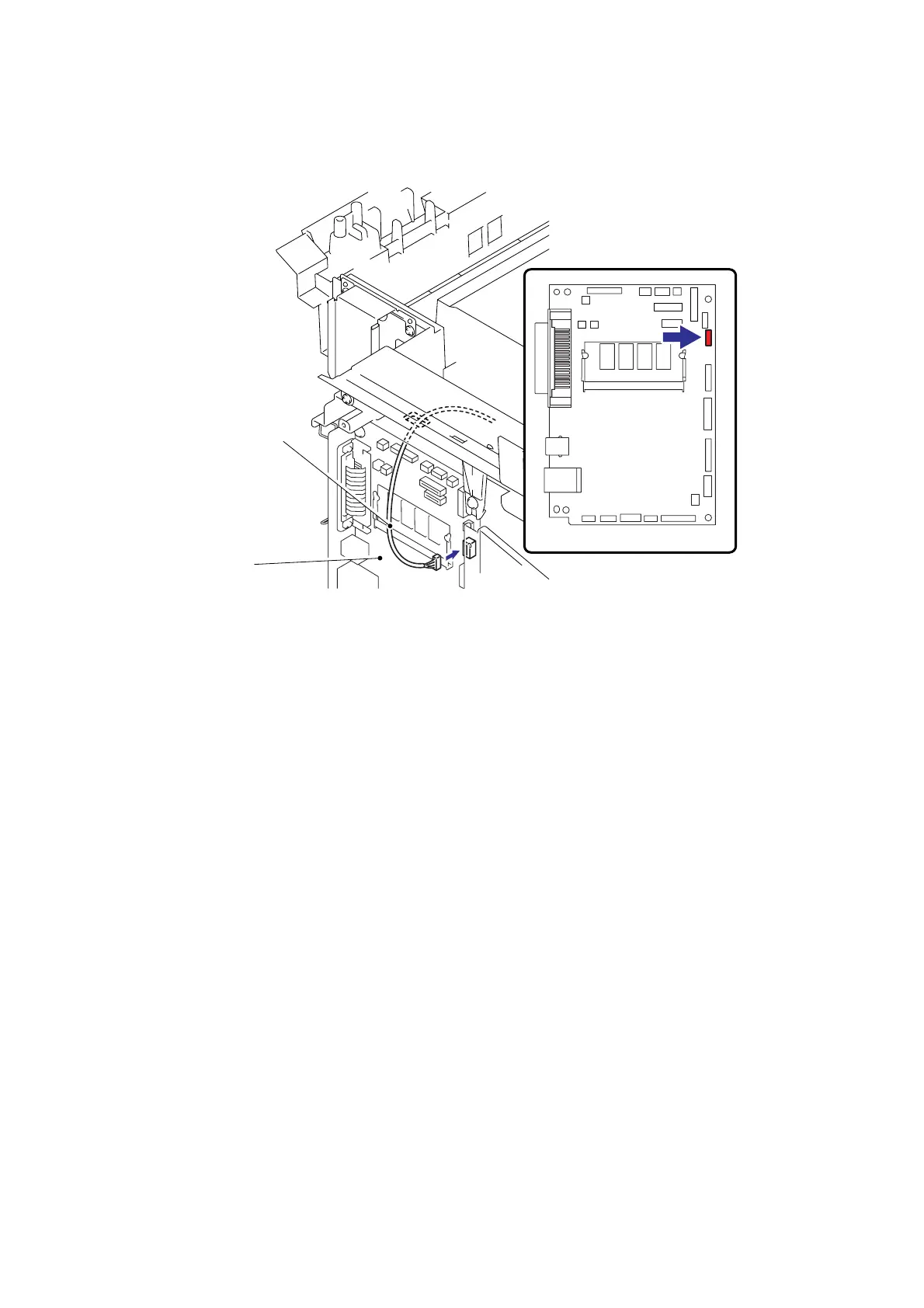

Fig. 5-125
Main PCB
USB HOST harness
ASSY
Main PCB
