Brother DCP 8085DN

5-130
Confidential
9.83 Wireless PCB (PCB T60H989 ASSY 04) (Wireless LAN model)
(1) Disconnect the connector from the Wireless PCB harness.
(2) Remove the Wireless PCB (PCB T60H989 ASSY 04) from the Frame R.

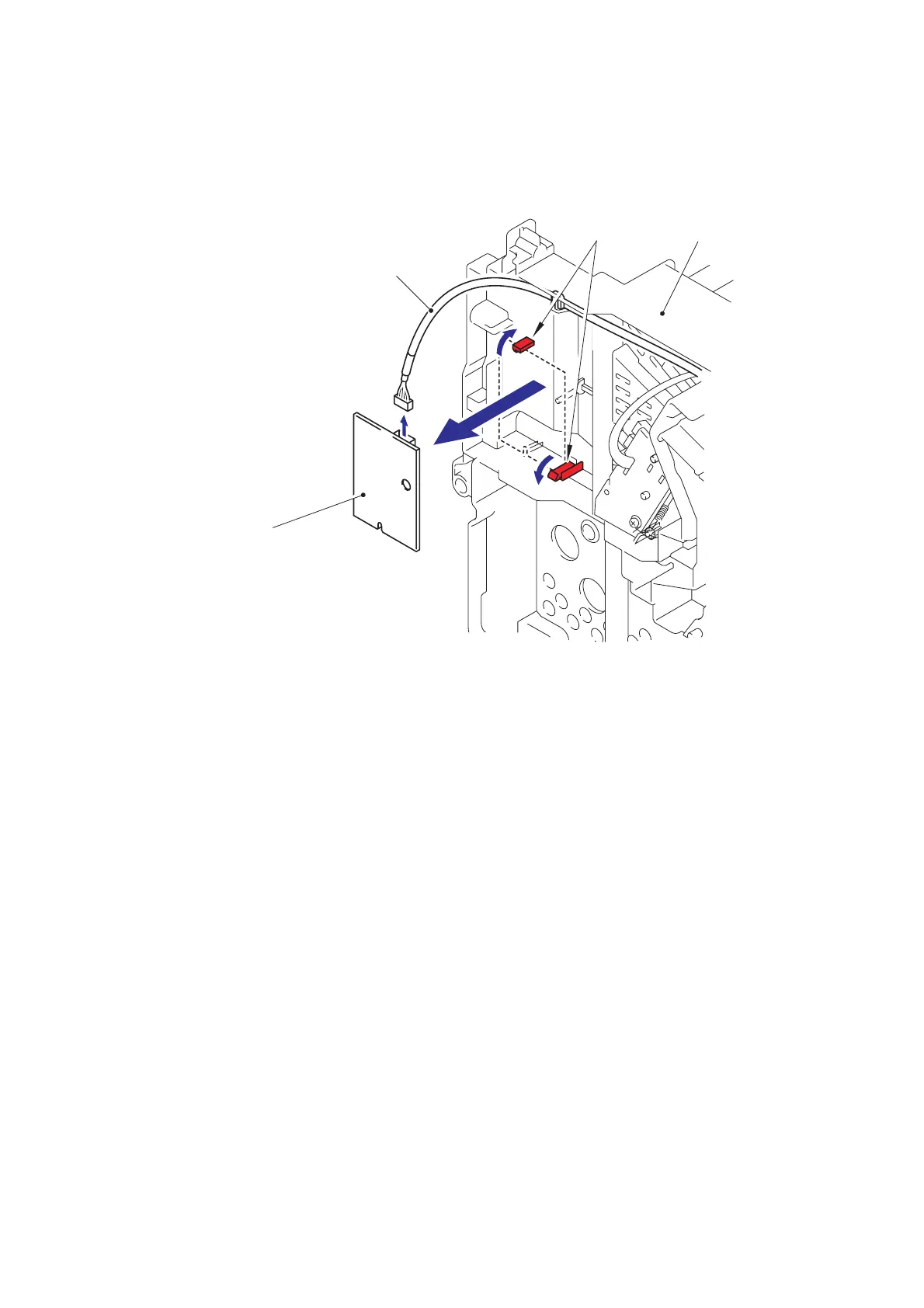

Fig. 5-176
Frame RHooks
Wireless PCB harness
Wireless PCB
(PCB T60H989 ASSY 04)
