Brother DCP 8085DN

5-168
Confidential
10.15 LT Sensor PCB ASSY

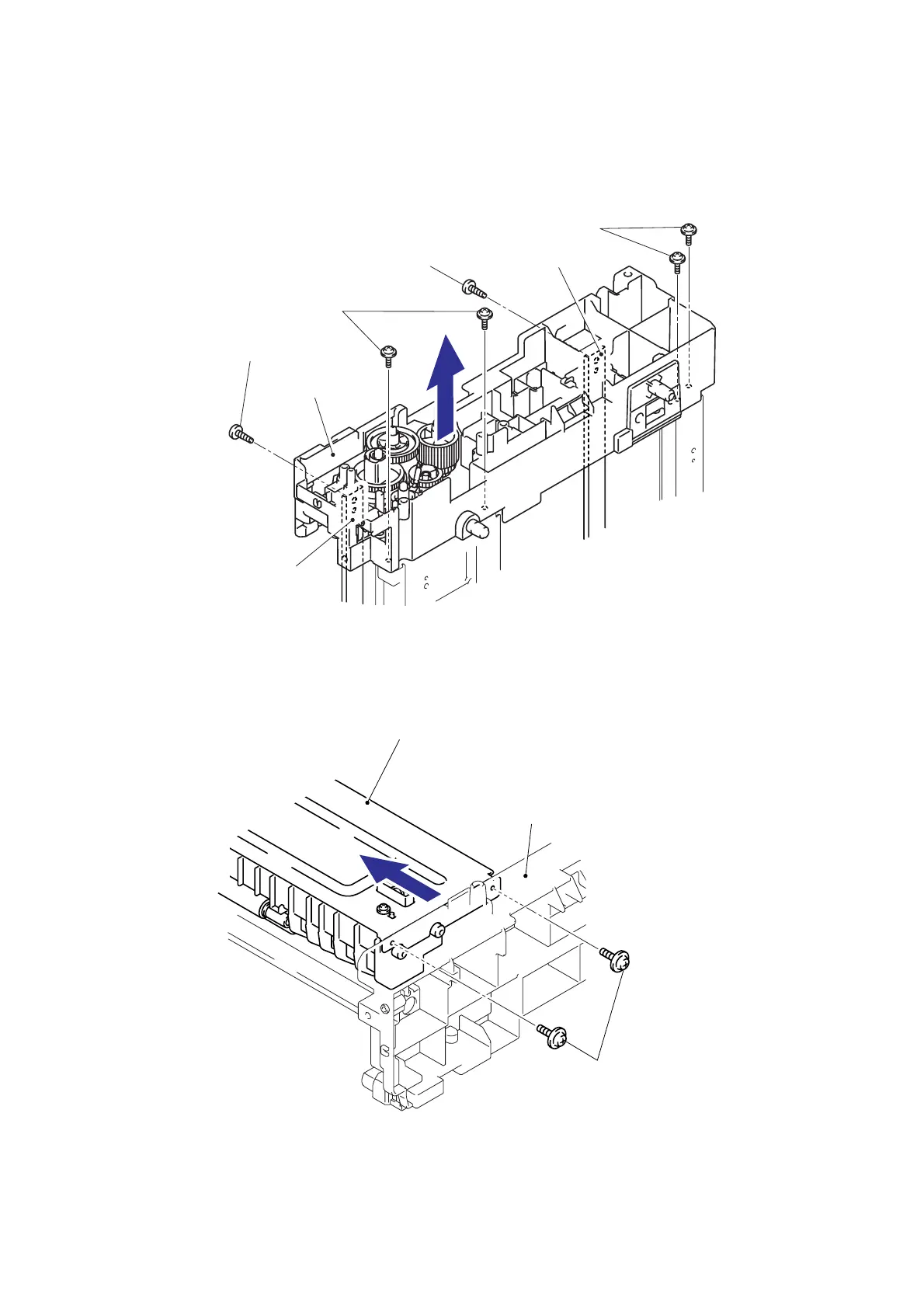

(1) Remove the two bind B M4x12 Taptite screws.
(2) Remove the four cup S M3x6 Taptite SR screws, and then remove the LT frame L.
Fig. 5-240
(3) Remove the two cup S M3x6 Taptite SR screws, and then remove the LT paper feed
frame.
Fig. 5-241
Taptite, cup S M3x6 SR
Taptite, cup S M3x6 SR
Under bar
Under bar
LT frame L
Taptite, bind B M4x12
Taptite, bind B M4x12
LT paper feed frame
LT frame R
Taptite, cup S M3x6 SR
