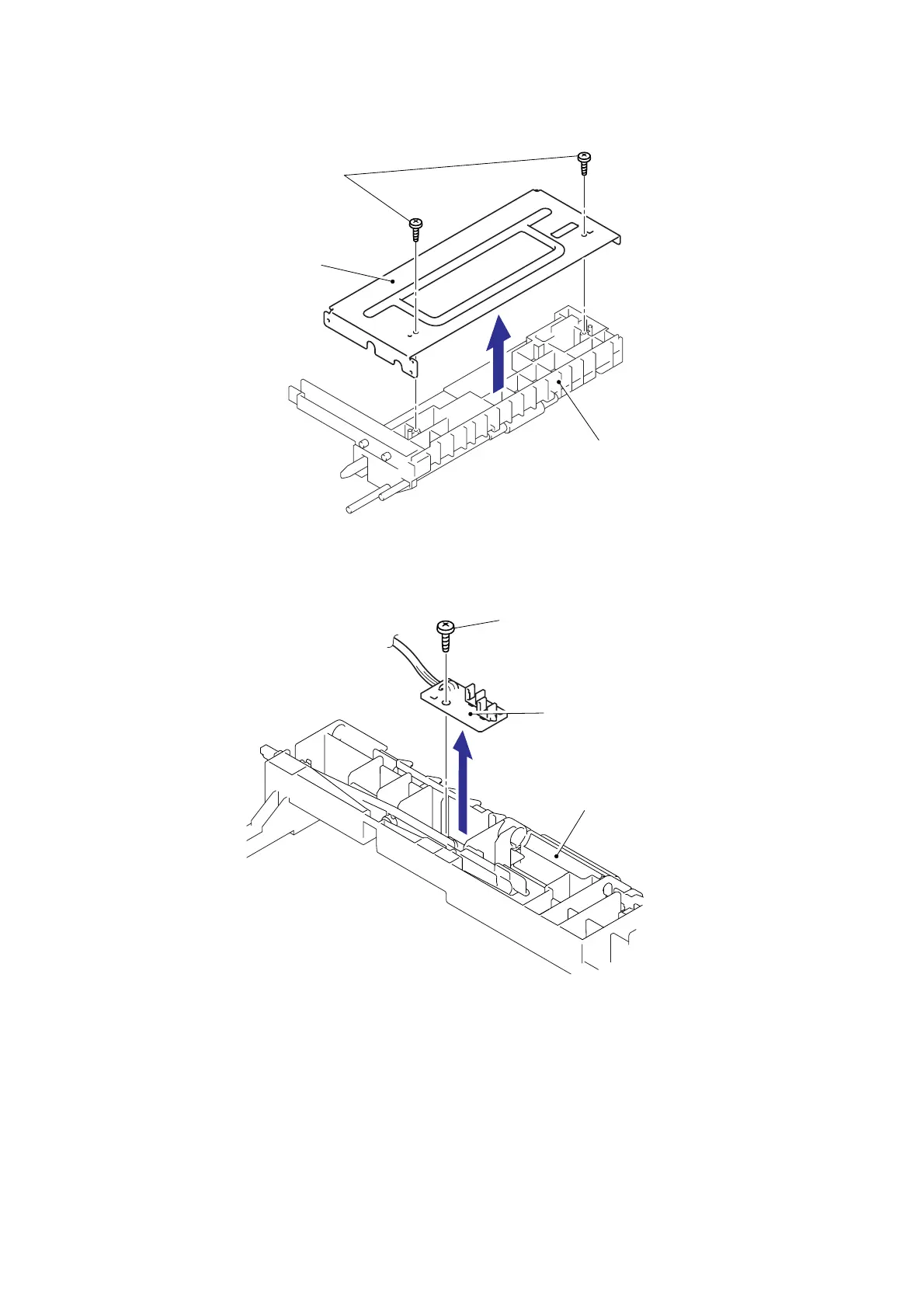

(4) Remove the two cup B M3x12 Taptite screws, and then remove the LT front beam.
Fig. 5-242
(5) Remove the bind B M3x8 Taptite screw, and then remove the LT sensor PCB ASSY.
Fig. 5-243
Taptite, cup B M3x12
LT front beam
LT paper feed frame
Taptite, bind B M3x8
LT sensor PCB ASSY
LT paper feed frame
