Brother DCP 8085DN

5-97
Confidential

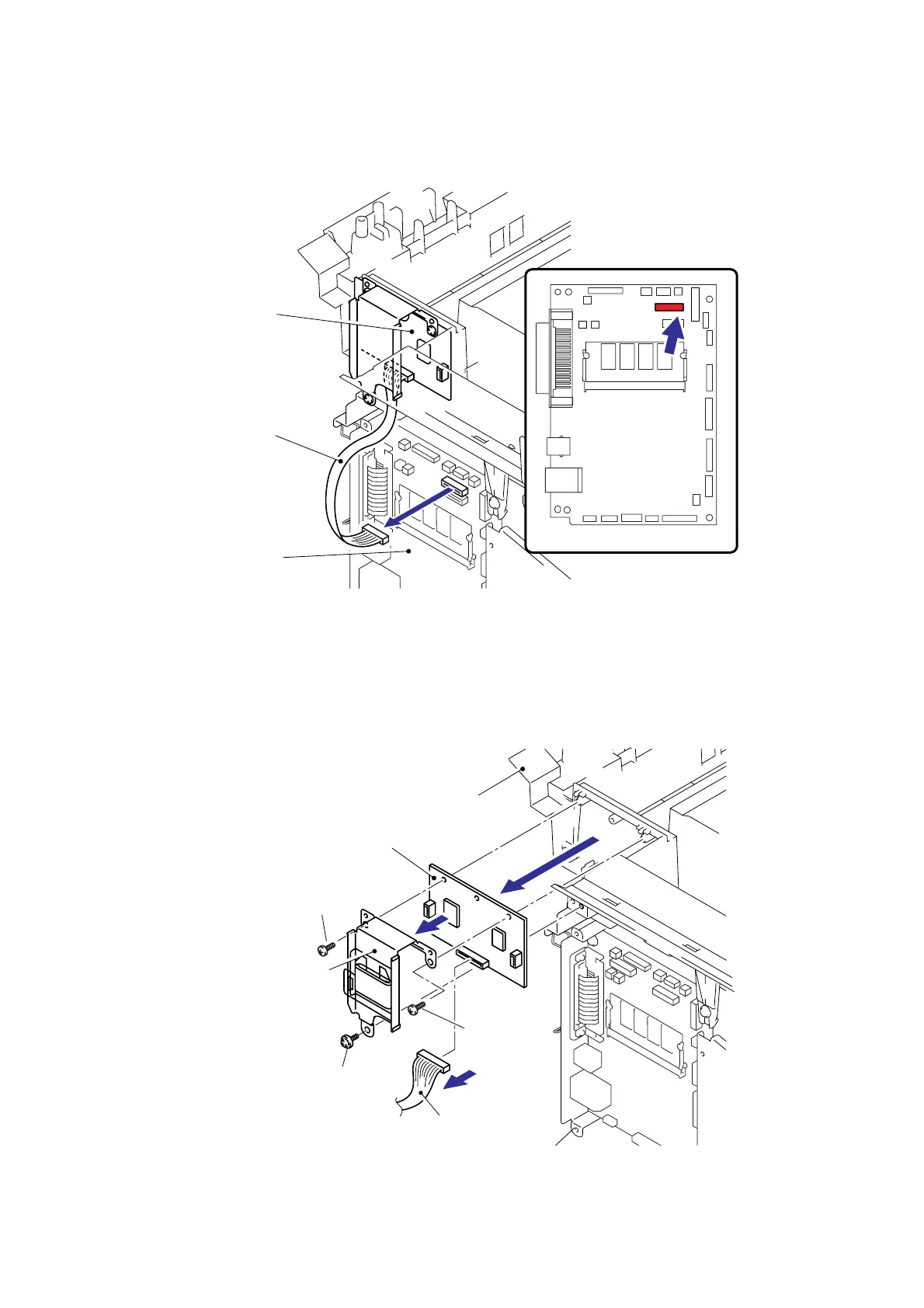

9.60 Driver PCB
(1) Disconnect the connector of the Driver harness from the Main PCB.
Fig. 5-123
(2) Remove the cup S M3x6 SR Taptite screw and two cup B M3x8 Taptite screws.
(3) Remove the Driver PCB shield and Driver PCB from the Joint cover ASSY.
(4) Disconnect the connector of the Driver harness from the Driver PCB.
Fig. 5-124
Driver PCB
Driver harness
Main PCB
Main PCB
Joint cover ASSY
Driver PCB
Driver PCB shield
Taptite cup B M3x8
Taptite cup S M3x6 SR
Taptite cup B
M3x8
Driver harness
