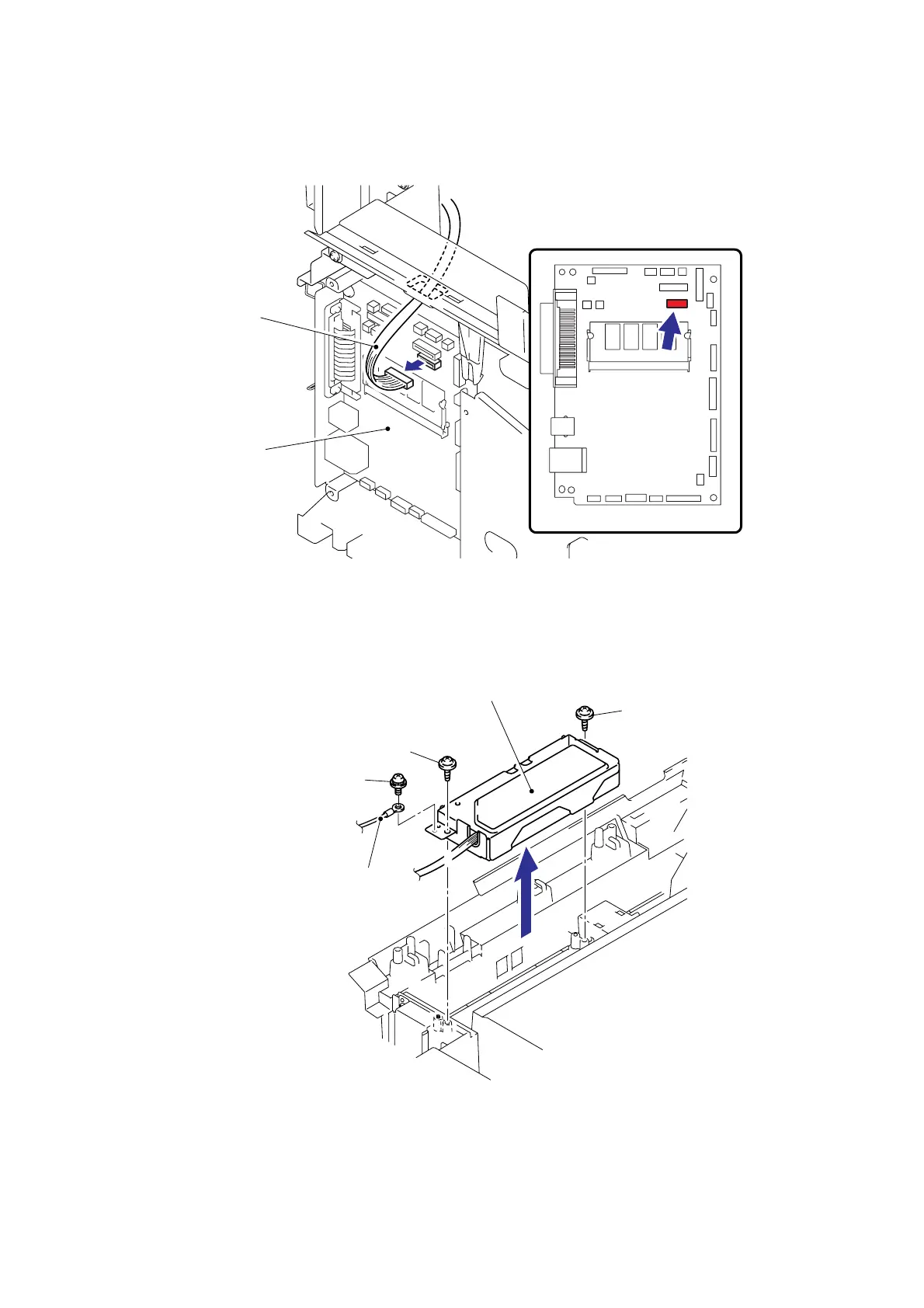

9.58 NCU PCB ASSY (For the models with the NCU only)
(1) Disconnect the connector of the NCU harness from the Main PCB.
Fig. 5-117
(2) Remove the Screw pan (S/P washer) M3.5x6, and remove the NCU FG harness ASSY.
(3) Remove the two bind B M4x12 Taptite screws, and then remove the NCU unit.
Fig. 5-118
NCU harness
Main PCB
Main PCB
<Left side>
NCU unit
Taptite, bind B M4x12
Taptite, bind B M4x12
Screw, pan (S/P washer) M3.5X6
NCU FG harness ASSY
<Back side>
