9.43 Eject Roller B4
(1) Remove the four Eject rollers B4 and two Pressure roller shaft S from the Document
cover LGL.

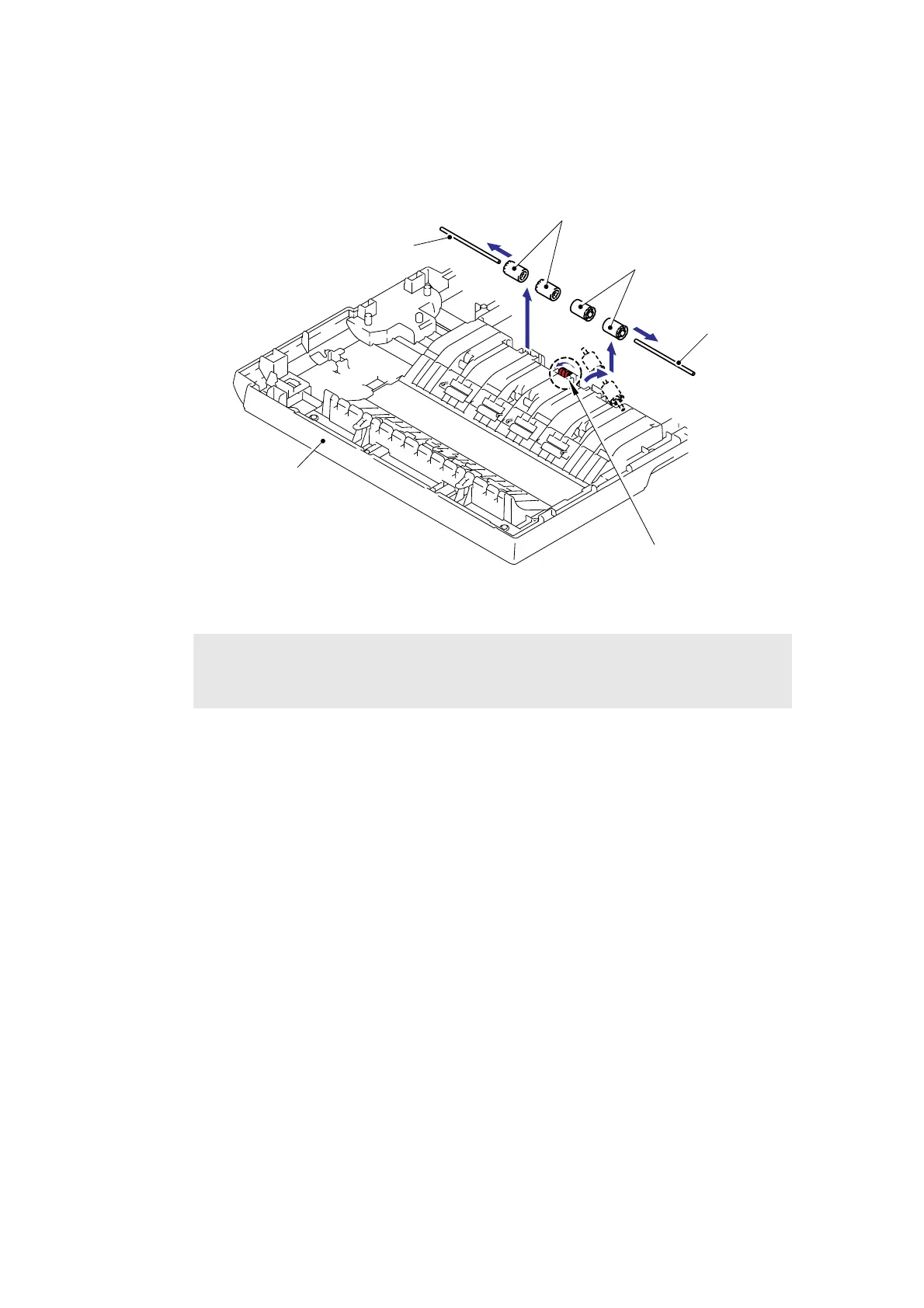

Fig. 5-92
Assembling Note:
• When assembling the Eject rollers B4, ensure that the direction of each roller is
correct as shown in the figure above.
Eject rollers B4
Eject rollers B4
Pressure roller shaft S
Hook
<Front side>
Pressure roller shaft S
Document cover LGL
