(2) Release the Hooks of the Photo interrupter to remove the Photo interrupter from the
Lower main chute.
(3) Disconnect the Connector from the Photo interrupter.

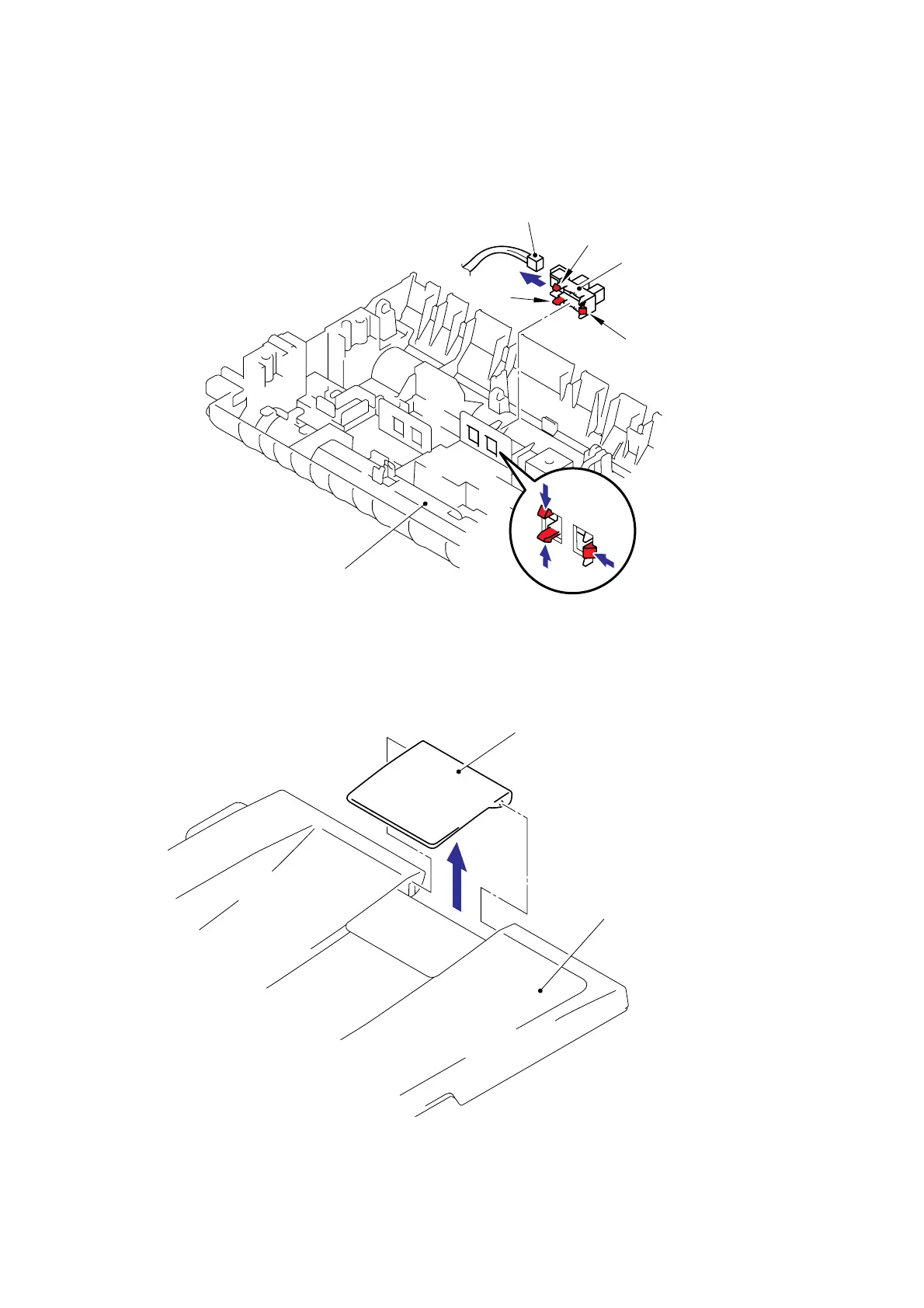

Fig. 5-89
9.41 Document Ejection Tray
(1) Remove the ADF document output support flap from the Document cover LGL.
Fig. 5-90
Connector
Hook
Hook
Photo interrupter
Lower main chute
Hook
ADF document output support flap
Document cover LGL
<Front side>
