7-9
Confidential
4.5 Test Pattern 1 (Function code 09)
<Function>
This function, much like the copying function, prints out test pattern 1 to allow the service
personnel to check for record data missing or print quality.
<Operating Procedure>
Press the [0] and [9] keys in this order in the initial stage of the maintenance mode.

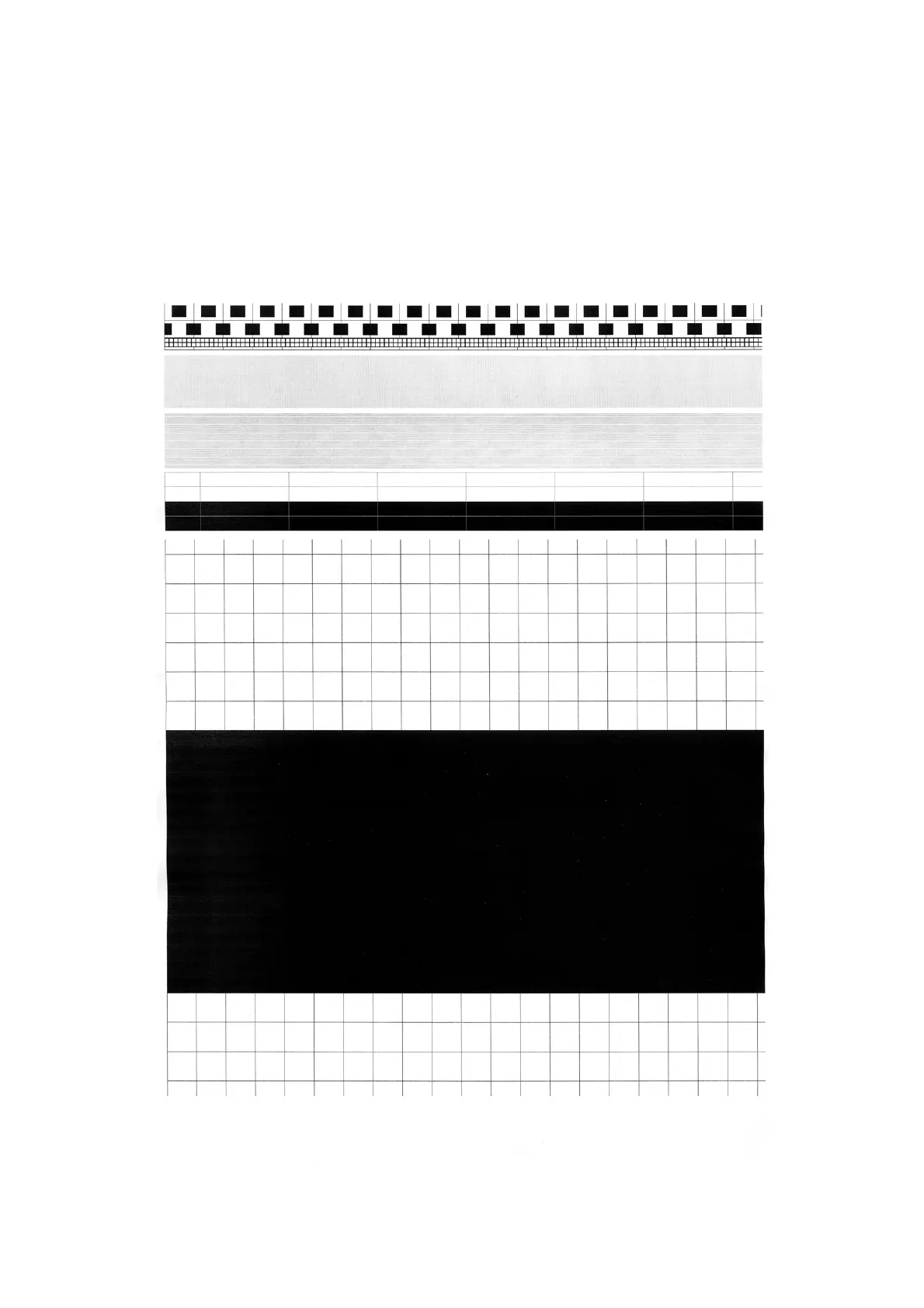

The figure below shows test pattern.
Fig. 7-3
To Next Page
