Brother DCP 8085DN

5-47
Confidential

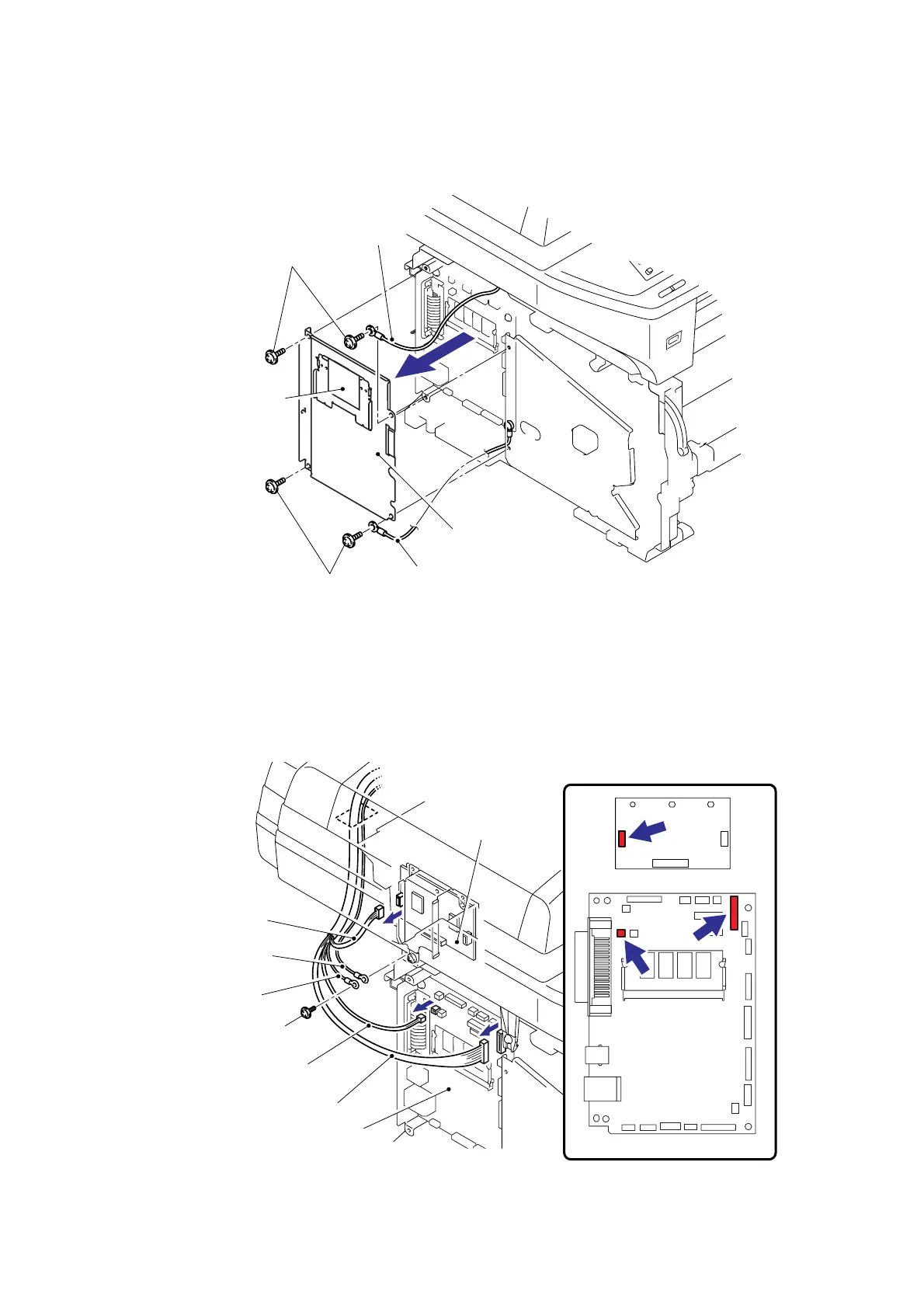

9.8 ADF Unit
(1) Remove the four cup S M3x6 Taptite screws, remove the two FG harnesses and then
remove the Shield cover ASSY.
Fig. 5-34
(2) Remove the cup S M3x6 Taptite screw, remove the ADF FG harness and FB FG
harness.
(3) Disconnect the Connector from the Driver PCB.
(4) Disconnect the two Connectors from the Main PCB.
Fig. 5-35
Taptite cup S M3x6 SR
Taptite cup S M3x6 SR
FG harness
FG harness
Seal
Shield cover ASSY
Driver PCB
Main PCB
Main PCB
<Left side>
Connector
(ADF motor harness)
Connectors
(ADF relay harness)
Connector
(FB cover sensor)
FB FG harness
Taptite cup S M3x6
ADF FG harness
