Brother DCP 8085DN - PF Roller Holder ASSY

5-56
Confidential
9.19 PF Roller Holder ASSY
(1) Turn the ADF chute ASSY upside down. Release the Hooks of the Conductive bushing
A to remove the Conductive bushing A.
(2) Remove the Bushing from the ADF chute ASSY, and remove the PF roller holder ASSY
from the ADF chute ASSY.

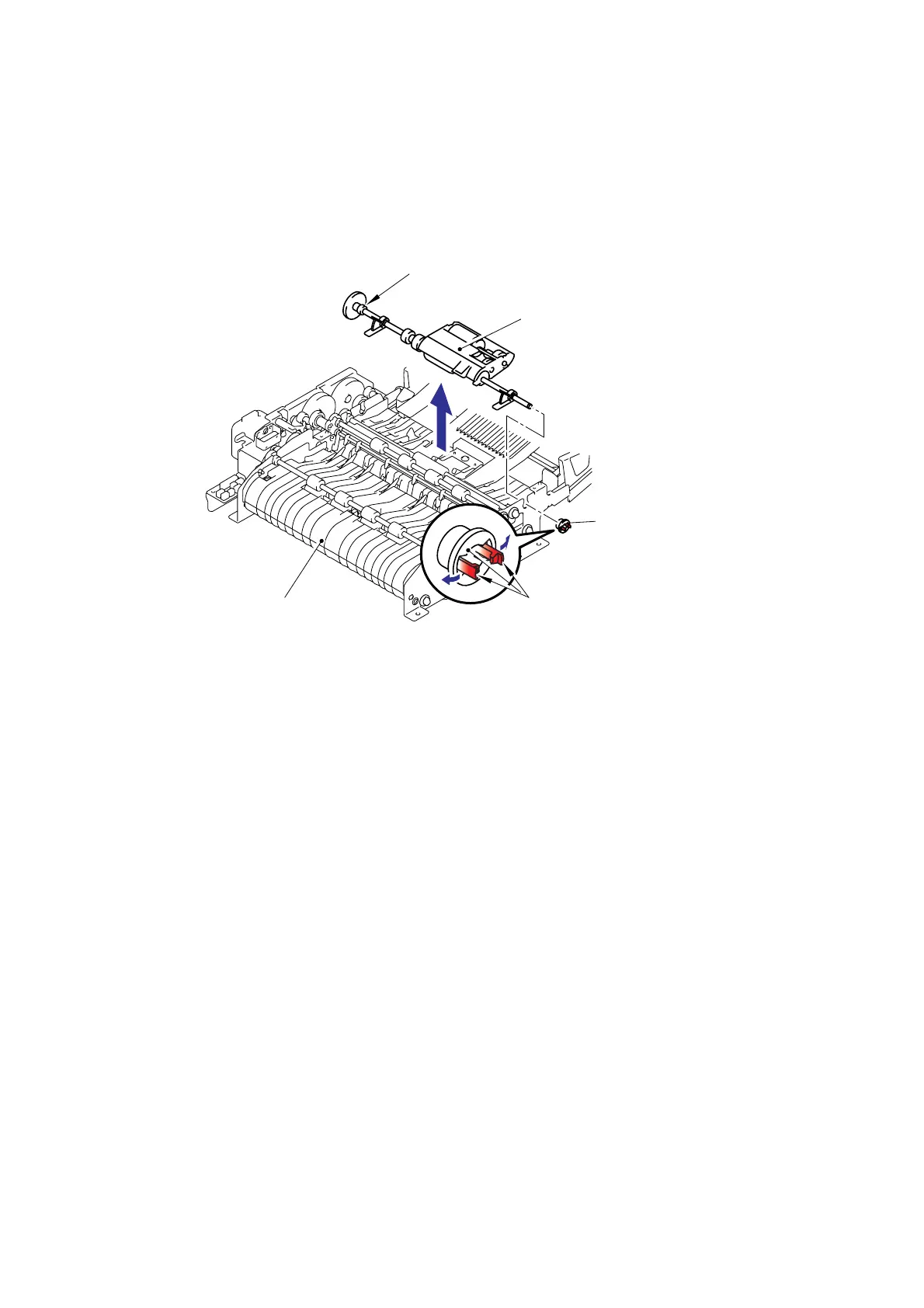

Fig. 5-51
Bushing
PF roller holder ASSY
Conductive bushing A
<Front side>
Hooks
ADF chute ASSY
