9.59 Speaker ASSY
(1) Disconnect the connector of the Speaker harness from the Main PCB.

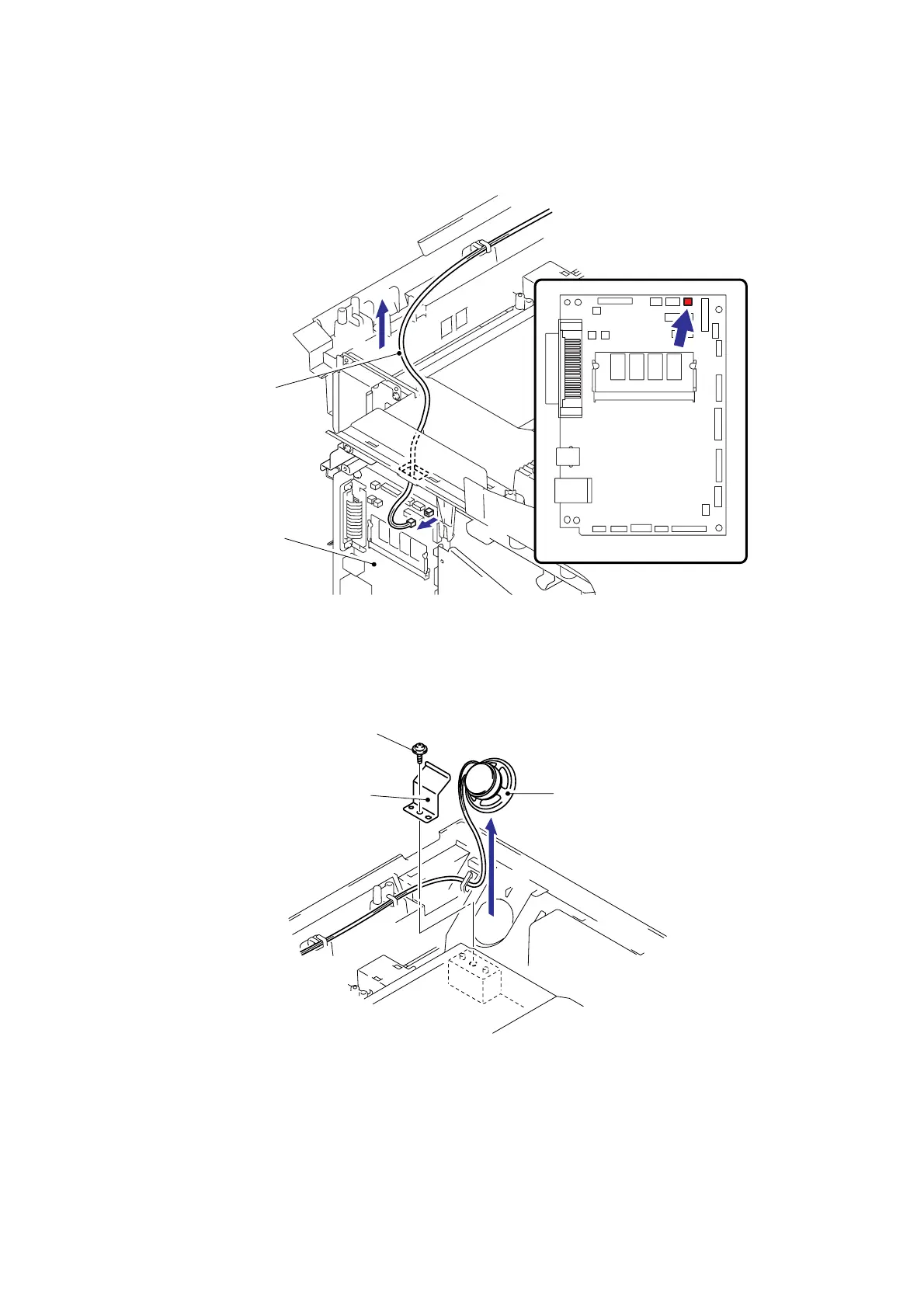

Fig. 5-121
(2) Remove the bind B M4x12 Taptite screw.
(3) Remove the Speaker hold spring and Speaker ASSY.
Fig. 5-122
Speaker harness
Main PCB
Main PCB
Speaker ASSY
Speaker hold spring
Taptite bind B M4x12
