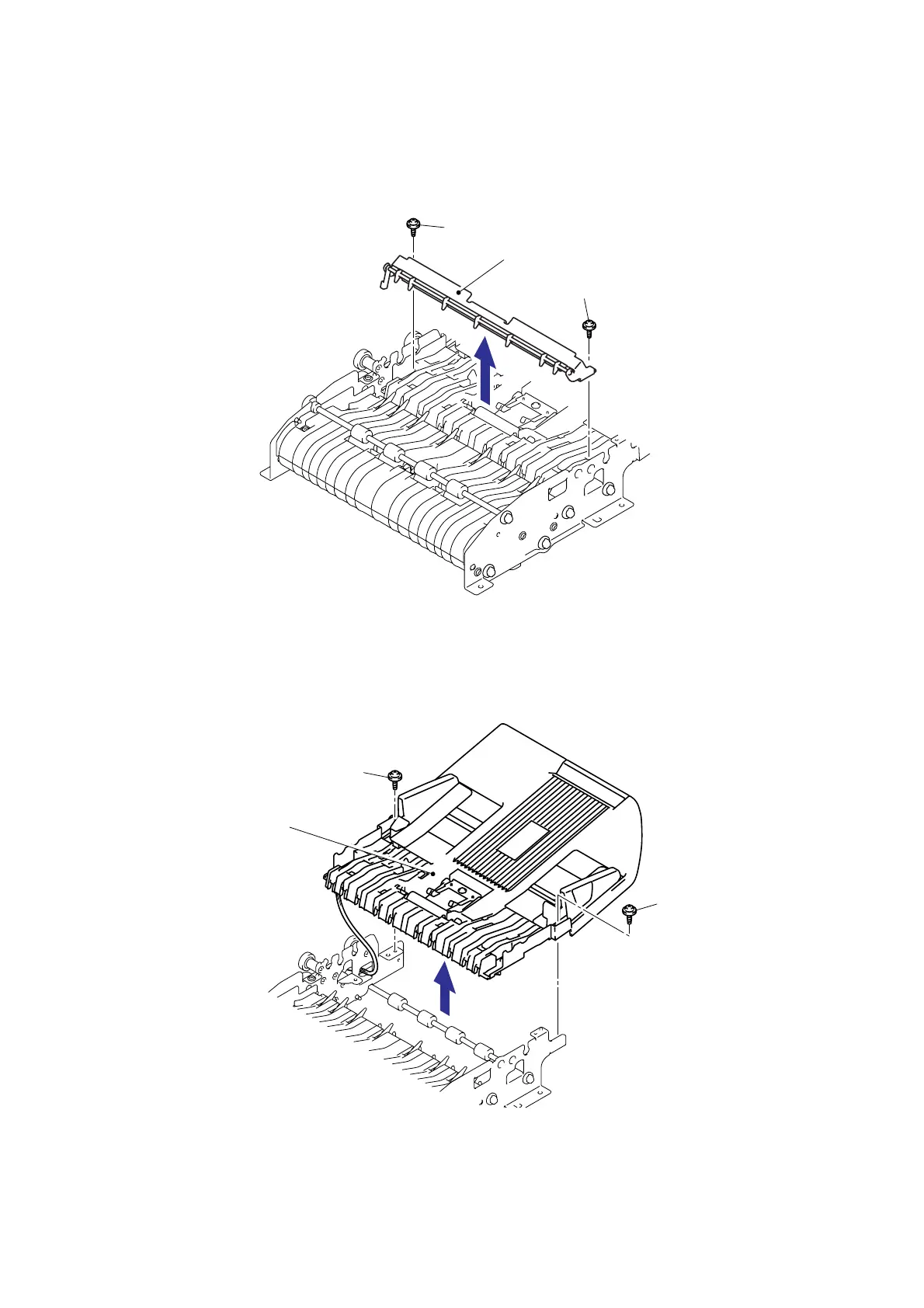

9.26 Paper Feed Chute ASSY
(1) Remove the two cup S M3x8 Taptite screws.
(2) Remove the Paper feed plate. (For the models with the DX only)
Fig. 5-63
(3) Remove the two cup B M3x8 Taptite screws.
(4) Remove the Paper feed chute ASSY.
Fig. 5-64
Taptite cup S M3x8
Taptite cup S M3x8
Paper feed plate
Taptite cup S M3x8
Taptite cup S M3x8
Paper feed chute ASSY
