9.51 Scanner Motor FB
(1) Remove the cup S M3x6 Taptite screw, and then remove the FB FG harness.
(2) Remove the four pan B M3x8 Taptite screws, and then remove the Drive plate ASSY.

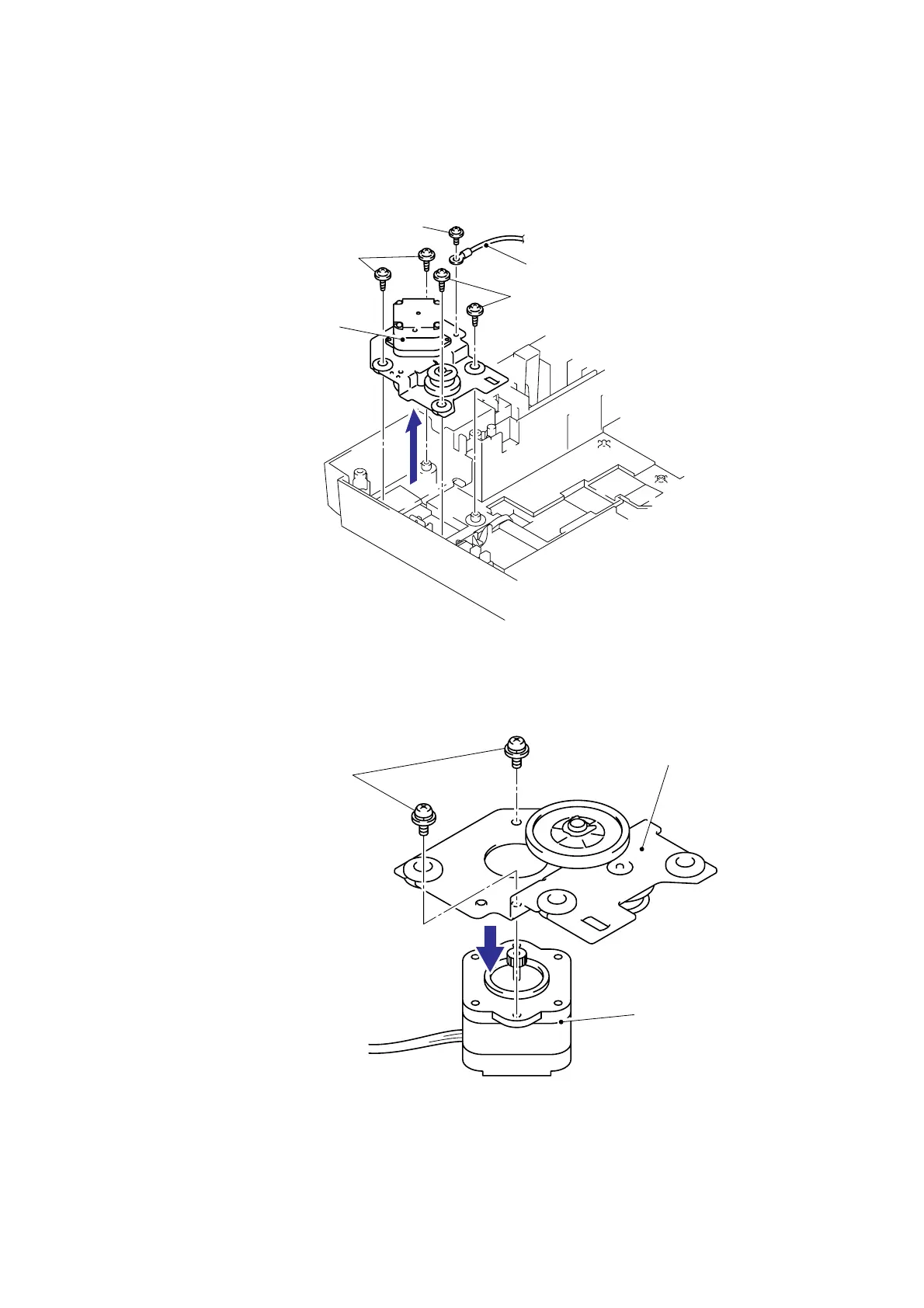

Fig. 5-105
(3) Remove the two Screws pan (S/P washer) M3x6, and then remove the Scanner motor
FB.
Fig. 5-106
Taptite cup S M3x6
Taptite B M3x8
Drive plate ASSY
Taptite B M3x8
FB FG harness
Drive plate ASSY
Screw, pan (S/P washer) M3X6
Scanner motor FB
