Brother DCP 8085DN

2-3
Confidential
3. MECHANICS

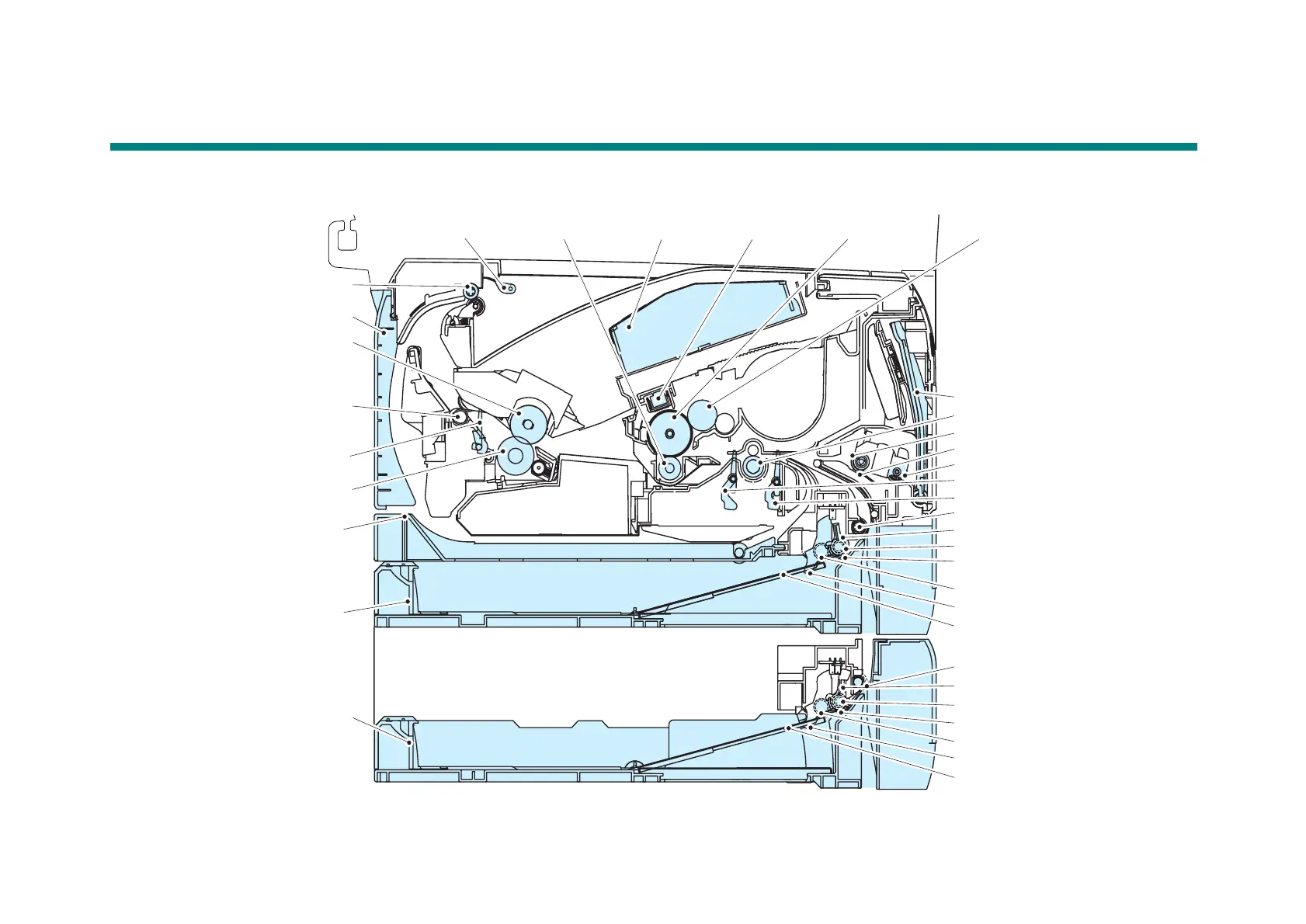

3.1 Cross-section Drawing
- Printer part
Fig. 2-3
MP
Duplex unit
Exposure drumCorona wireLaser unit
Eject roller 2
Heat roller
Paper eject actuator
Pressure roller
Back cover
Transfer rollerPaper stack lever
Paper tray
Paper tray (LT unit)
Paper feed roller MP
Separation roller MP
Paper feed roller
Separation roller
Regist actuator front
Regist actuator rear
PE actuator
Feed roller TR
Separation roller LT
Feed roller LT
Paper feed roller LT
Edge actuator
Plate
Separation pad
Separation pad MP
MP tray
Regist roller
Develop roller
Plate LT
Separation pad LT
PE actuator LT
Edge actuator LT
Eject roller 1
