Brother DCP 8085DN Service Manual

5-99
Confidential

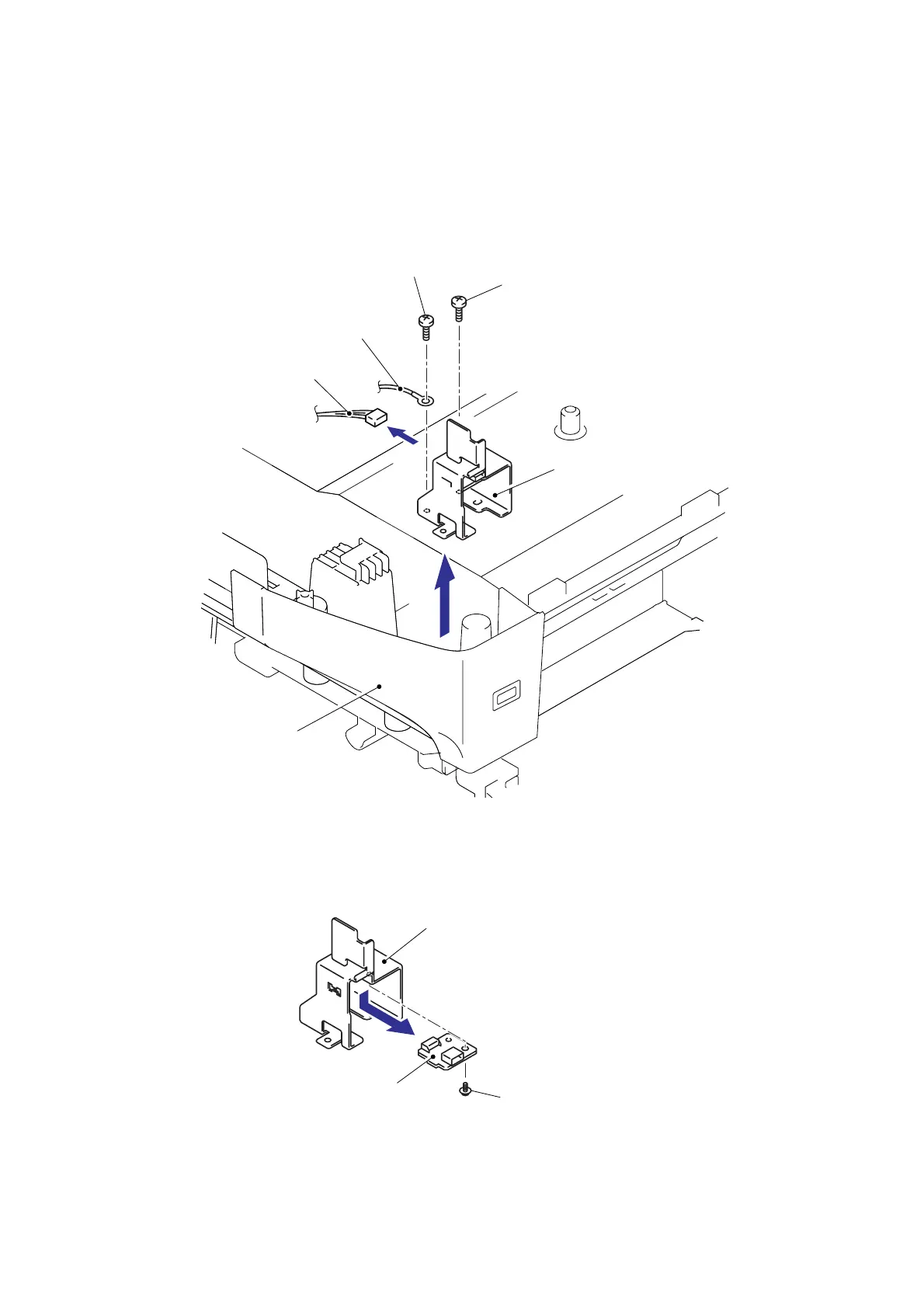

(2) Disconnect the connector of the USB HOST harness ASSY from the USB HOST PCB
ASSY.
(3) Remove the bind B M4x12 Taptite screw, and remove the USB HOST FG harness.
(4) Remove the bind B M4x12 Taptite screw, and remove the USB PCB holder from the joint
cover ASSY.
Fig. 5-126
(5) Remove the cup S M3x6 SR Taptite screw, and remove the USB HOST PCB ASSY
from the USB PCB holder.
Fig. 5-127
Joint cover ASSY
USB HOST FG harness
USB HOST harness ASSY
USB PCB holder
Taptite bind B M4x12
Taptite bind B M4x12
USB HOST PCB ASSY
USB PCB holder
Taptite cup S M3x6 SR

Brother DCP 8085DN Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Economical printing	Yes
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Scan to	CIFS, E-mail, FTP, Image, OCR, USB
Scanner type	Flatbed scanner
Grayscale levels	256
Input color depth	48 bit
Output color depth	24 bit
Image formats supported	BMP, JPG
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	600 x 2400 DPI
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
N-in-1 copy function (N=)	2
Copy speed (black, normal quality, A4)	30 cpm
Total input capacity	250 sheets
Total output capacity	150 sheets
Auto document feeder (ADF) input capacity	50 sheets
Internal memory	64 MB
Maximum internal memory	576 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	56 dB
Display	TFT
Market positioning	Business
Maximum print size	216 x 356 mm
Media weight (tray 1)	60 - 105 g/m²
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Transparencies
Non-ISO print media sizes	Executive
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Dimensions (WxDxH)	531 x 451 x 475 mm
All-in-one functions	Copy, Scan
Compatible operating systems	Windows 2000 Professional, XP Home Edition, XP Professional Edition, XP professional x64 Edition, Vista Mac OS X 10.3.9 + Linux
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP Client and Server, TELNET Server, HTTP/HTTPS server, SSL/TLS, TFTP client and server, SMTP Client, APOP, POP before SMTP, SMTP-AUTH, SNMPv1/v2c/v3, ICMP, LLTD responder, Web Services (Print), CIFS Client, SNTP
Supported network protocols (IPv6)	NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP Client and Server, TELNET Server, HTTP/HTTPS server, SSL/TLS, TFTP client and server, SMTP Client, APOP, POP before SMTP, SMTP-AUTH, SNMPv1/v2c/v3, ICMPv6, LLTD responder, Web Services (Print), CIFS Client, SNTP
Standard interfaces	Ethernet, Parallel, USB 2.0
USB 2.0 ports quantity	1
Bundled software	Brother MFL-pro suite in Windows: BrotherControlCentre 3 Scansoft Paperport 11SE + OCR, Macintosh:BrotherControlCentre 2 Newsoft Presto! Page manager 7
Power consumption (standby)	85 W
Power consumption (PowerSave)	16 W
Power consumption (average operating)	680 W
Package weight	21800 g
Maximum duty cycle	30000 pages per month
Page description languages	BR-Script 3, Epson FX, IBM ProPrinter, PCL 6
