Brother DCP 8085DN

5-53
Confidential

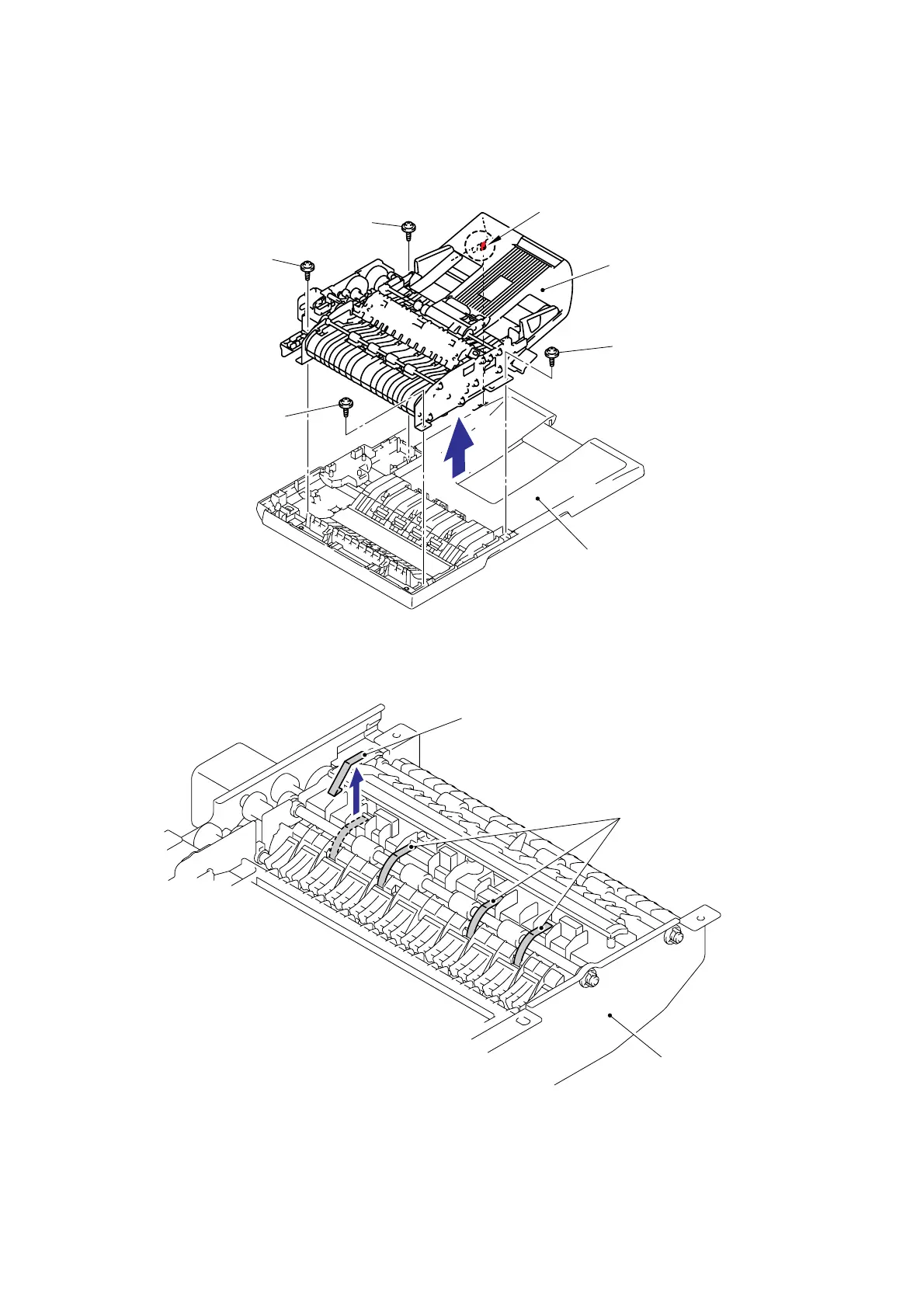

(5) Turn the Document cover LGL the correct way up and remove the four cup B M3x10
Taptite screws from the ADF chute ASSY.
(6) Release the hook to remove the ADF chute ASSY from the Document cover LGL.
Fig. 5-45
(7) Turn the ADF chute ASSY upside down and remove the four LF4 films.
Fig. 5-46
Taptite cup B M3x10
Taptite cup B M3x10
Document cover LGL
<Front side>
ADF chute ASSY
Hook
Taptite cup B M3x10
Taptite cup B M3x10
LF4 film
LF4 films
ADF chute ASSY
