Brother DCP 8085DN

5-106
Confidential

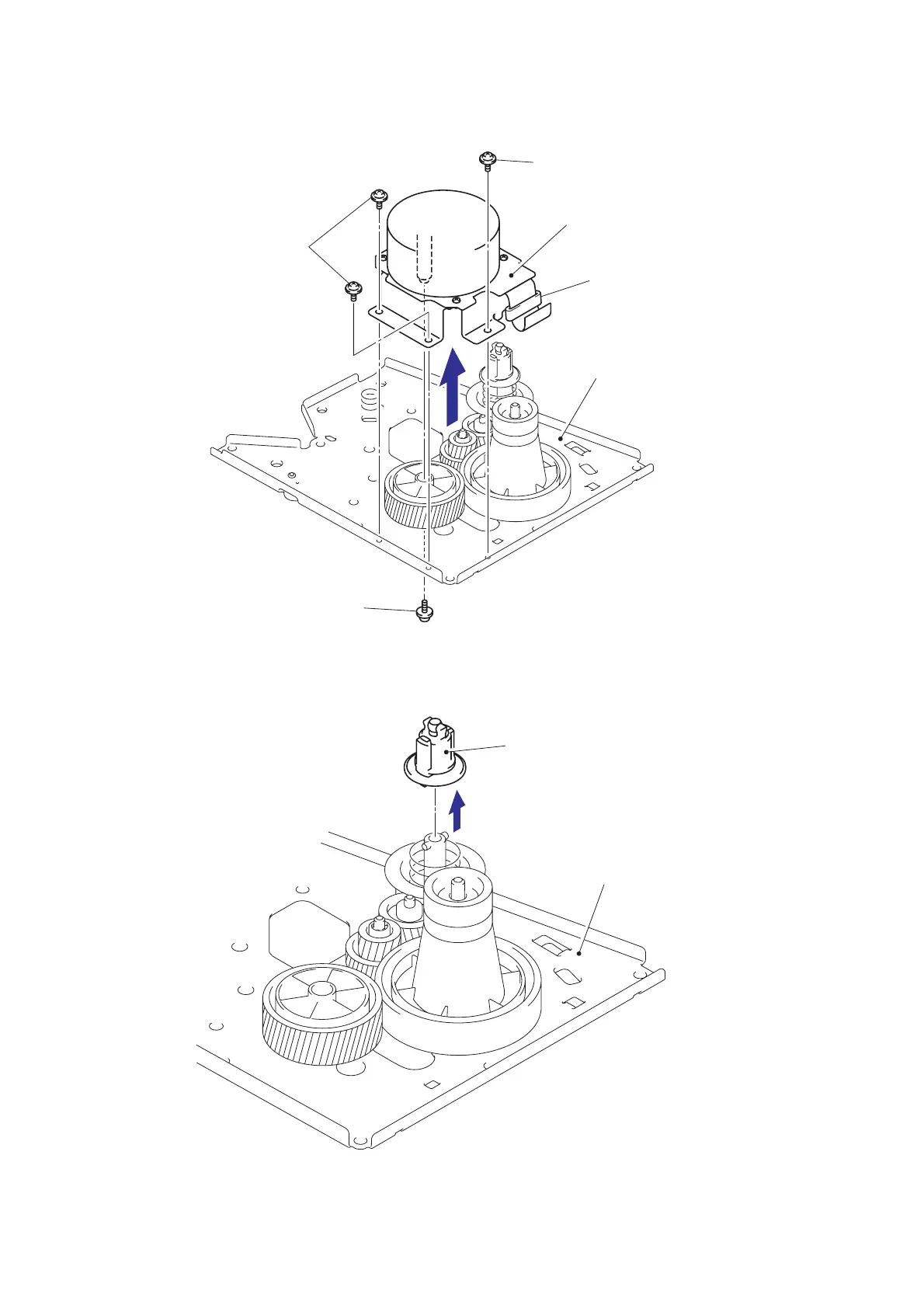

(4) Remove the four cup S M3x6 Taptite screws, and then remove the Main motor ASSY.
Fig. 5-134
(5) Remove the Develop joint from the Gear plate calking ASSY.
Fig. 5-135
Taptite, cup S M3x6
Ferrite core
Main motor ASSY
Gear plate calking ASSY
Taptite, cup S M3x6
Taptite, cup S M3x6
Develop joint
Gear plate calking ASSY
