(8) Remove the Hook of the right side, and then remove the MP tray extention from the MP
tray cover ASSY.

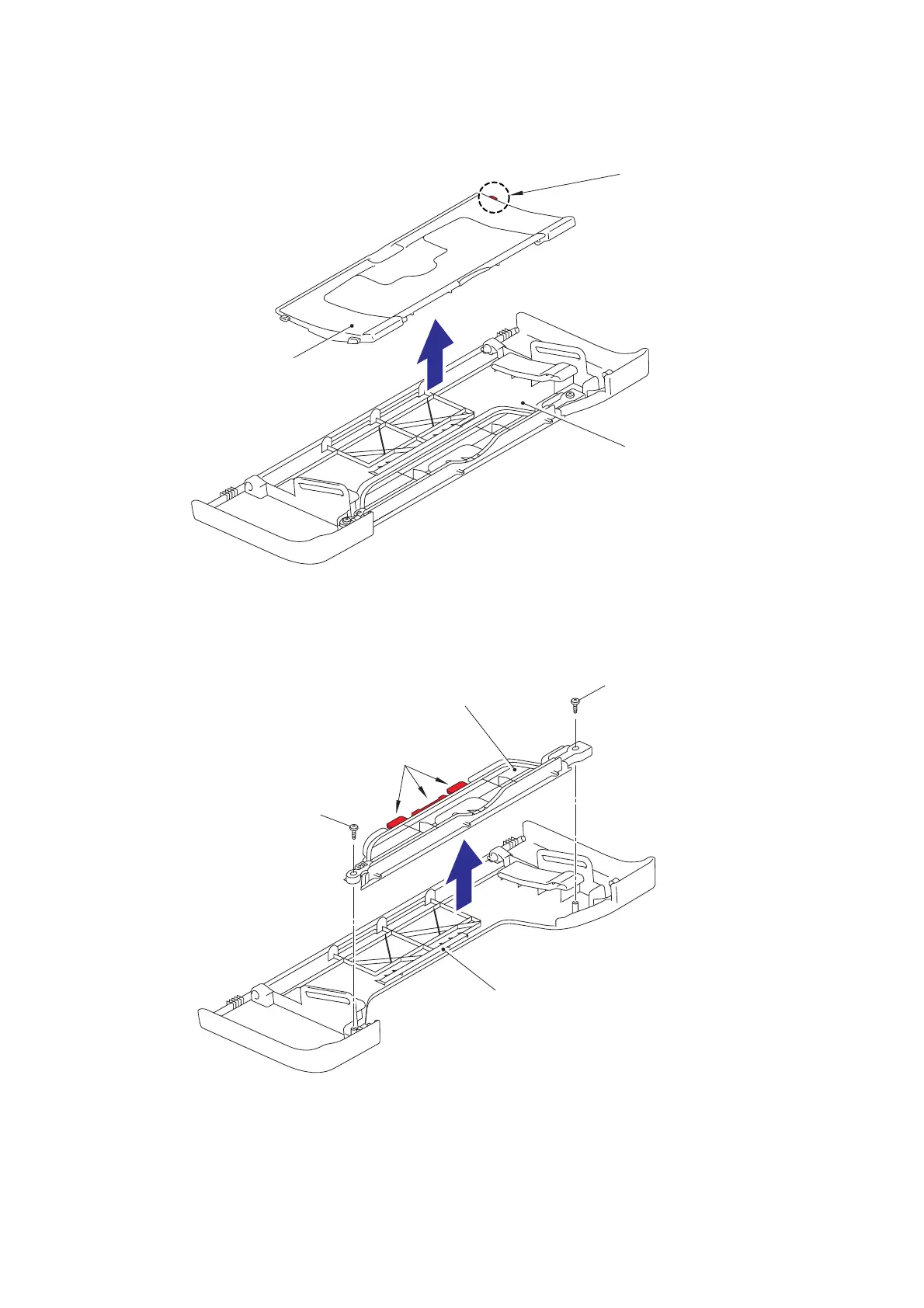

Fig. 5-30
(9) Remove the two bind B M3x10 Taptite screws, and then remove the Emblem cover from
the MP tray cover.
Fig. 5-31
MP tray cover ASSY
MP tray extention
Hook
Taptite, bind B M3x10
Taptite, bind B M3x10
MP tray cover
Emblem cover
Hook
