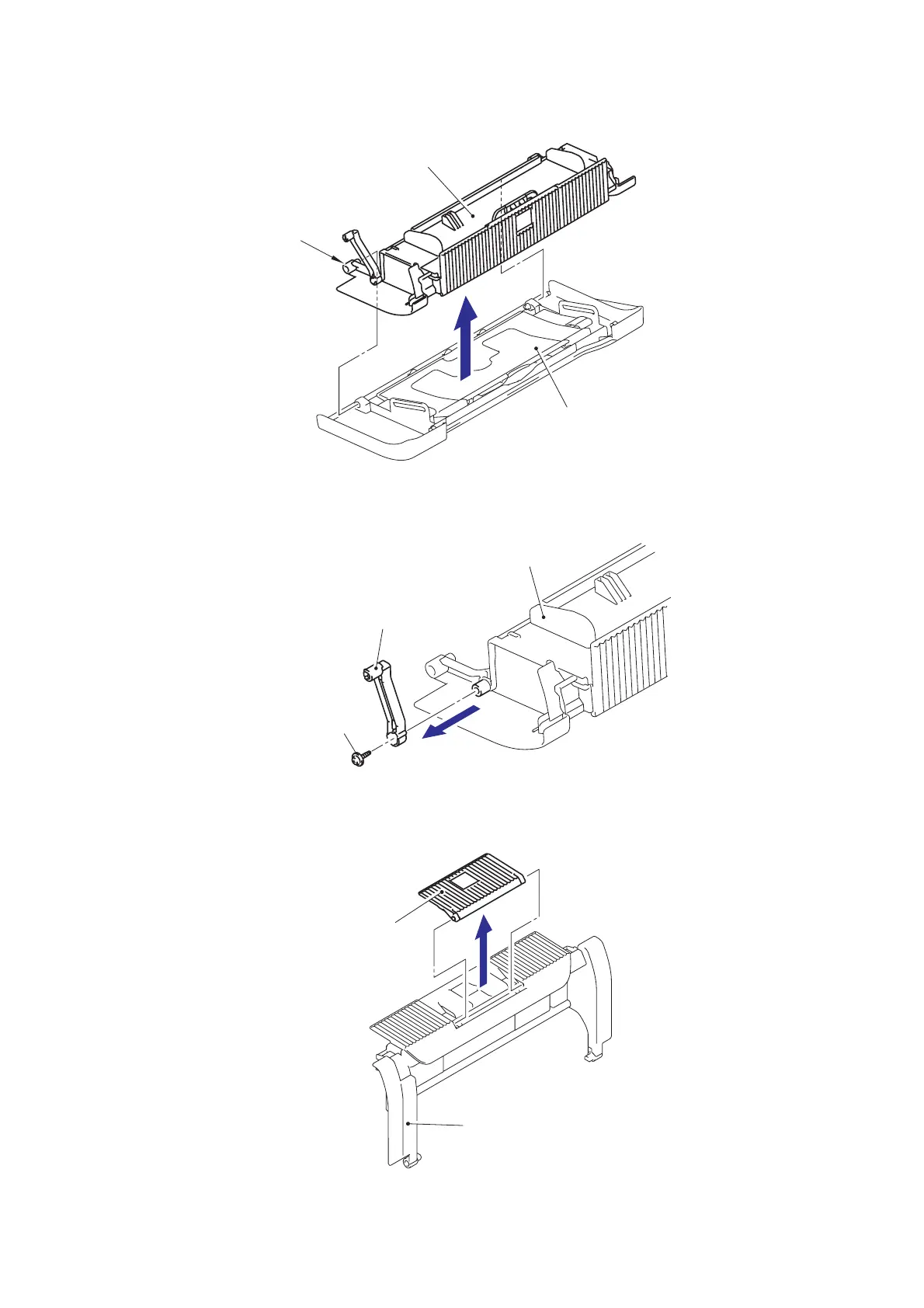

(5) Pull the Arm outwards and remove the Process cover ASSY from the MP tray cover ASSY.
Fig. 5-27
(6) Remove the cup B M4x10 Taptite screw, and then remove the Process cover stopper.
Fig. 5-28
(7) Remove the Support flap 1 from the Process cover.
Fig. 5-29
Process cover ASSY
Arm
MP tray cover ASSY
Process cover
Process cover stopper
Taptite, cup B M4x10
Support flap 1
Process cover
