Brother DCP 8085DN

4-5
Confidential

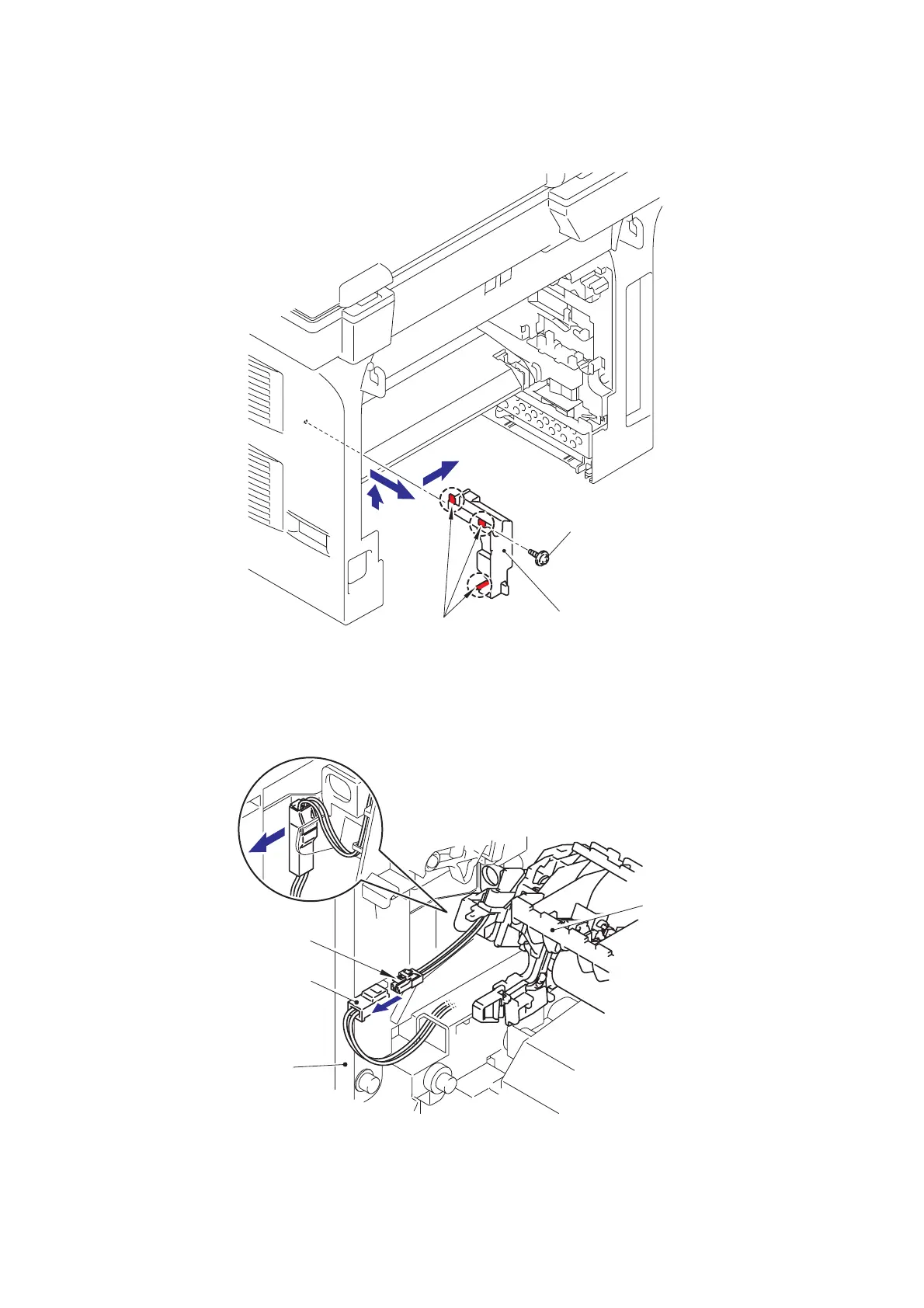

(8) Remove the pan B M4x20 Taptite screw. Release the Hooks in the order of 8a, 8b and
8c. Remove the FU harness cover 1.
Fig. 4-4
(9) Disconnect the connector of the Heater terminal while pressing the Hook of the
connector of the Fuser unit.
Fig. 4-5
Hooks
FU harness cover 1
Taptite pan B M4x20
8b
8a
8c
Hook
Frame R
Heater terminal
Fuser unit
