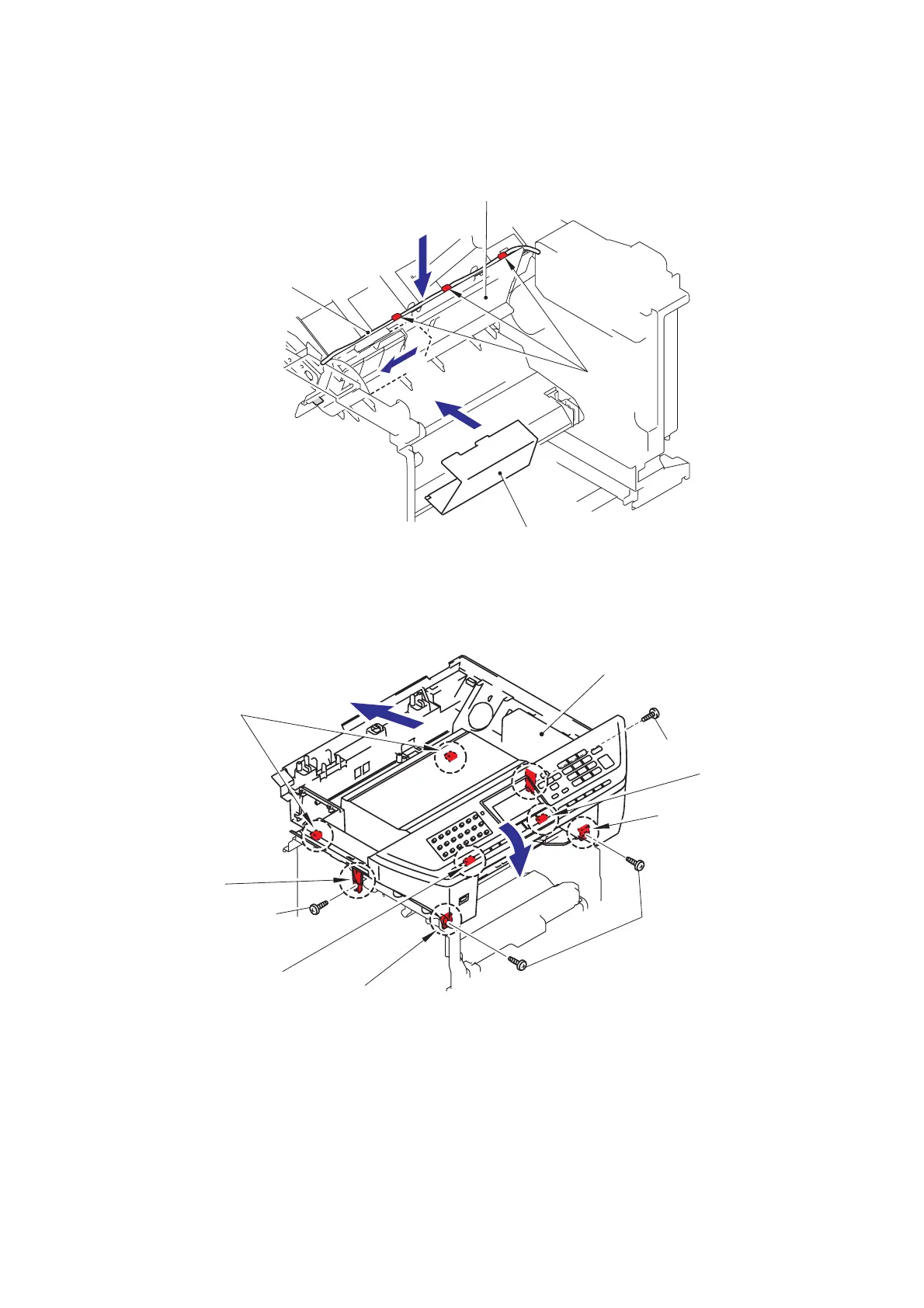

(7) Install the Sub duct into the Air duct.
(8) Connect the harness of the wireless PCB ASSY.
Fig. 4-26
(9) Secure the Joint cover with the four bind B M4x12 Taptite screws.
Fig. 4-27
Air duct
Sub duct
<Back side>
7b
8
Hooks
Wireless PCB harness
7a
5
9a
9b
Taptite bind B M4x12
Taptite bind B M4x12
Taptite bind B M4x12
<Front side>
Hook
Hooks
Hook
Hook
Hook
Hook
Joint cover
