Brother DCP 8085DN

4-20
Confidential
(13) Secure the Document scanner with the two bind B M4x12 Taptite screws.

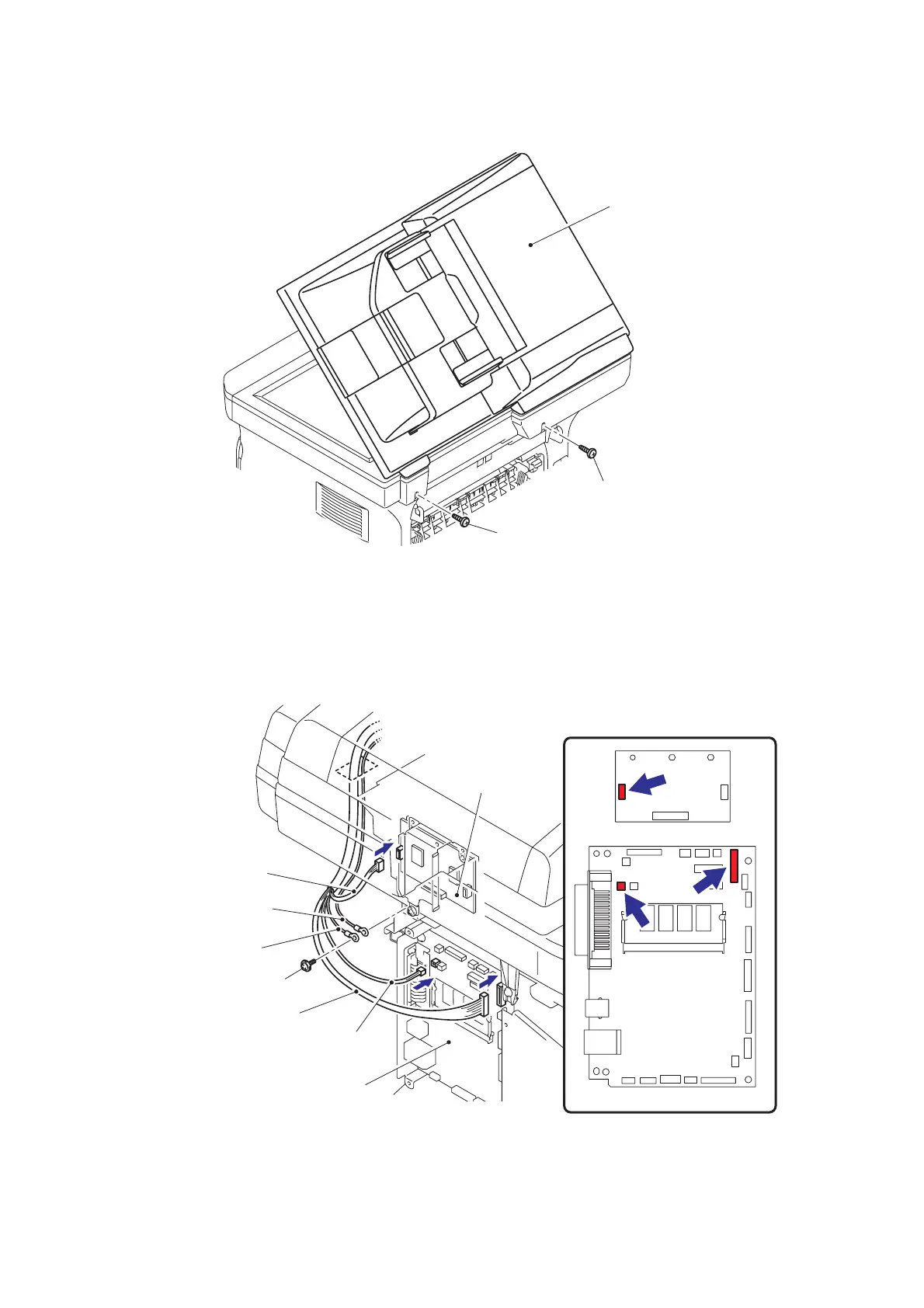

Fig. 4-30
(14) Connect the two Connectors into the Main PCB.
(15) Connect the Connector into Driver PCB.
(16) Secure the ADF FG harness and FB FG harness with the cup S M3x6 Taptite screw.
Fig. 4-31
Document scanner
Taptite, bind B M4x12
<Back side>
Taptite, bind B M4x12
Driver PCB
Main PCB
Main PCB
<Left side>
Connector
(ADF motor harness)
Connectors
(ADF relay harness)
Connector (FB cover sensor)
FB FG harness
Taptite cup S M3x6
ADF FG harness
