4-31
Confidential
(5) Turn the Printer upside down.

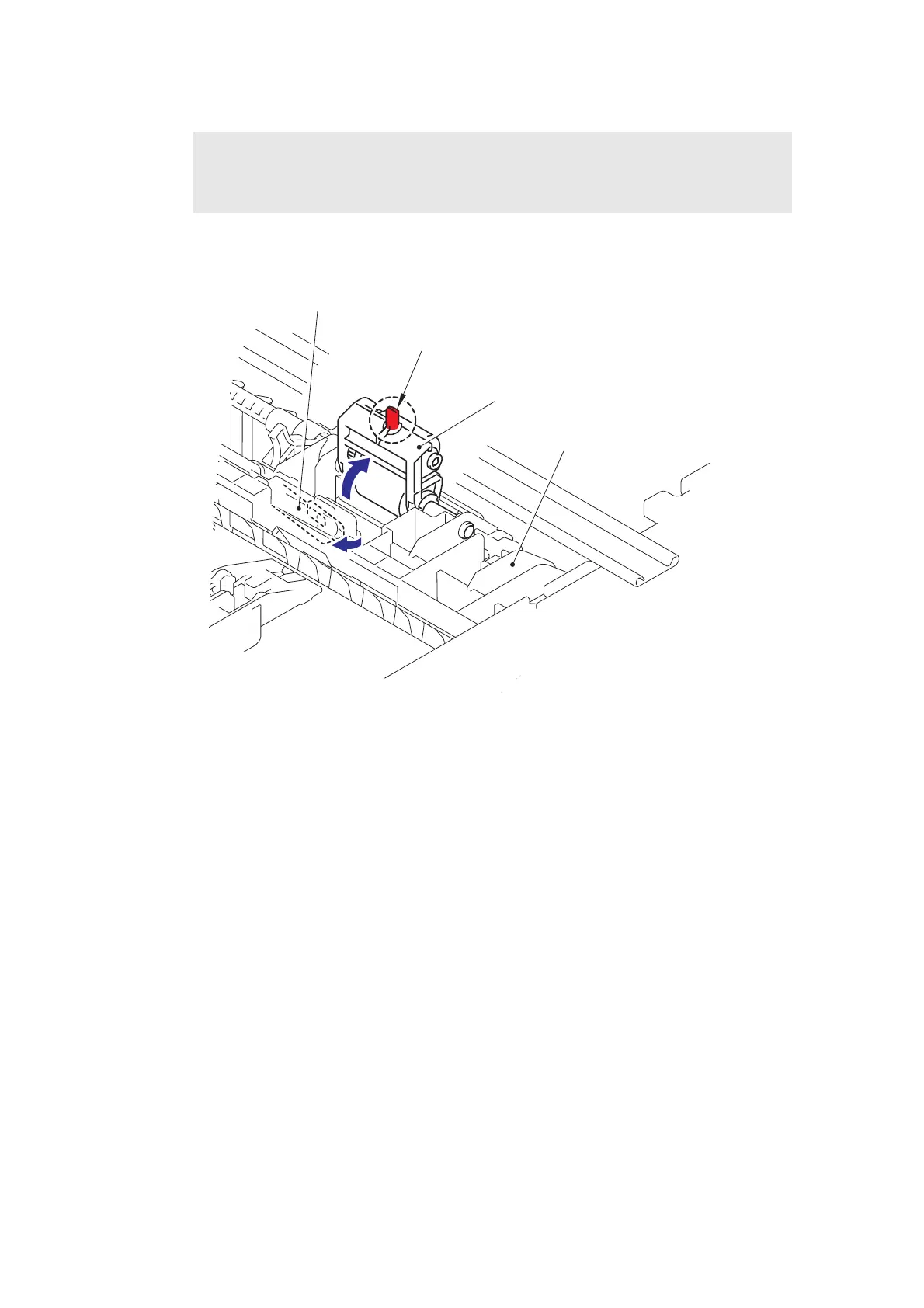

(6) Push the Lift arm to the direction of the arrow 6a and pull out the pin of the Roller holder
ASSY. Then, turn the Roller holder ASSY to the direction of the arrow 6b.
Fig. 4-46
Note :
• Pull out and put into the paper tray so that the Roller holder ASSY is lowered.
• If the Roller holder ASSY is remained up, it cannot be removed.
Lift arm
Pin
Roller holder ASSY
6b
Paper feed frame
6a6a
To Next Page
