Brother DCP 8085DN

5-22
Confidential
19

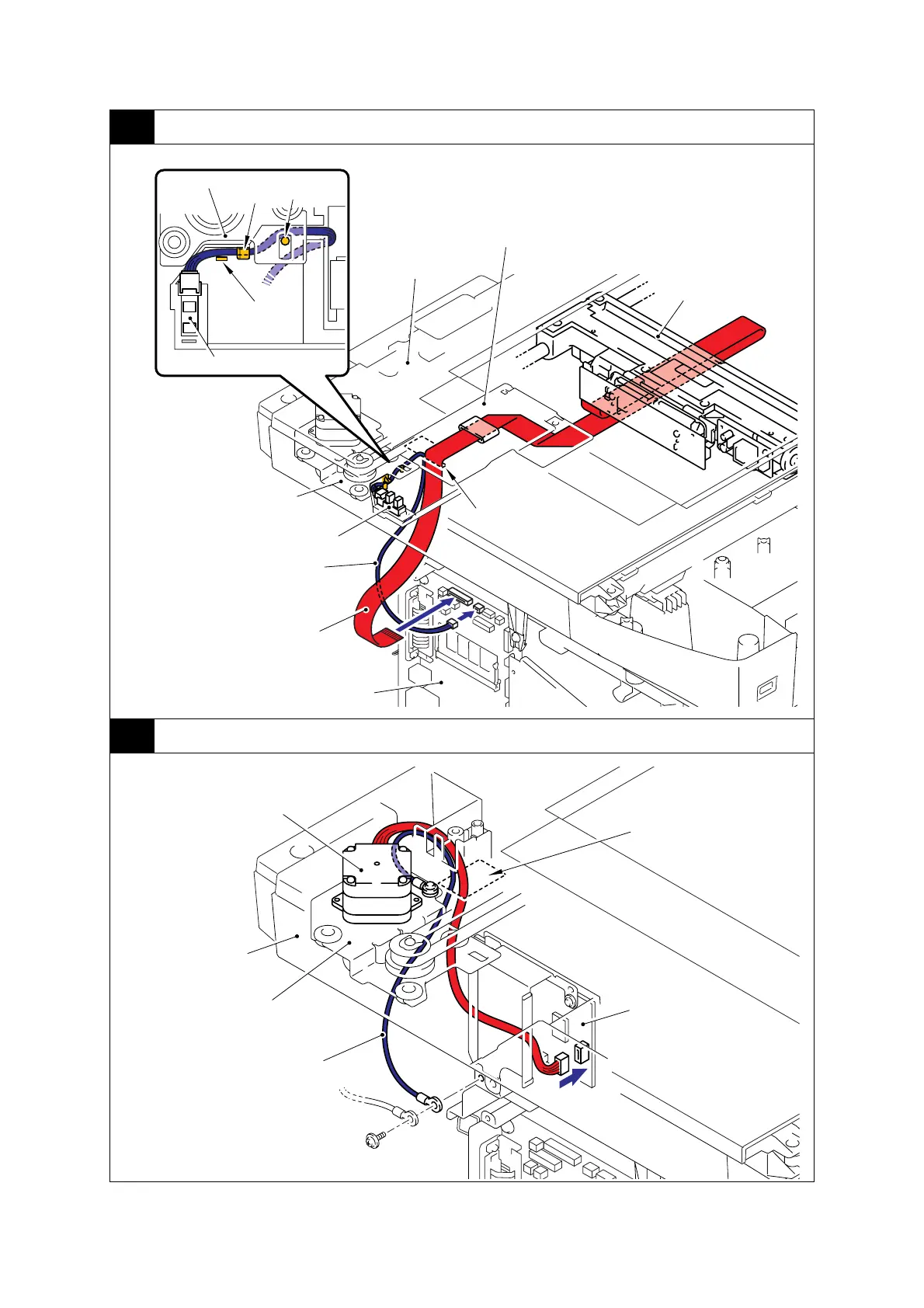

Scanner unit (CCD module, HP sensor)
20
Scanner unit (Scanner motor, FB FG harness)
Main PCB
CCD module
FFC cable
HP sensor
HP sensor
Drive plate ASSY
Drive plate ASSY
HP sensor harness
FFC plate
Hole
Scanner unit
Hook
Pin
Lib
Drive plate ASSY
Drive PCB
Scanner unit
Scanner motor FB
FB FG harness
Hole
