5-27
Confidential
28

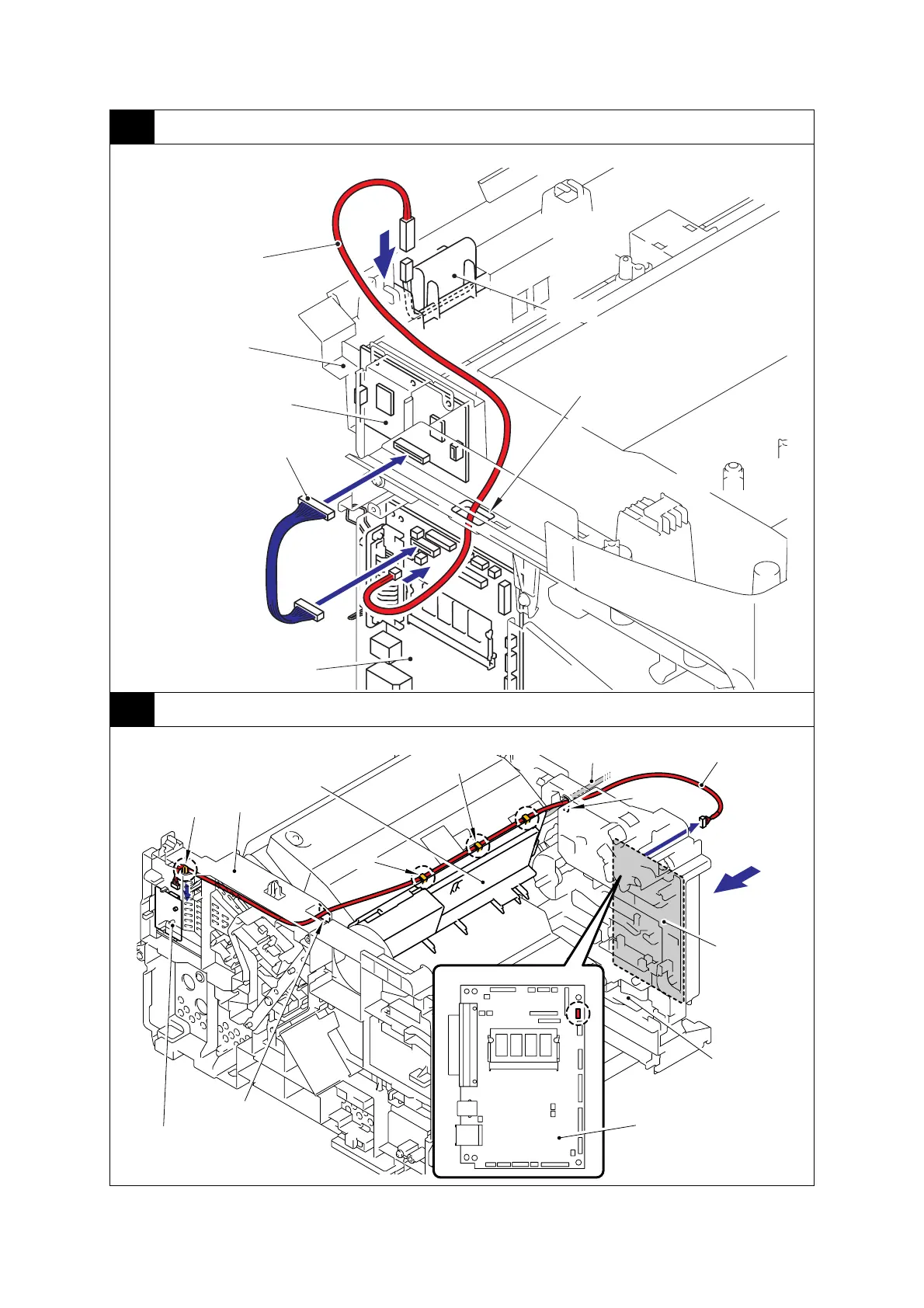

Driver PCB, Battery
29
Wireless PCB (PCB T60H929.00 ASSY 02)
Main PCB
Drive PCB
Joint cover ASSY
Driver harness
Battery harness
Battery
Hole
Hook
Hook
Hook
Hole
Hole
Frame R
Air duct
Frame L
Wireless PCB
(PCB T60H929 ASSY 02)
Wireless PCB harness
LD harness
Main PCB
Main PCB
<A view>
<A view>
