Brother DCP 8085DN

5-37
Confidential

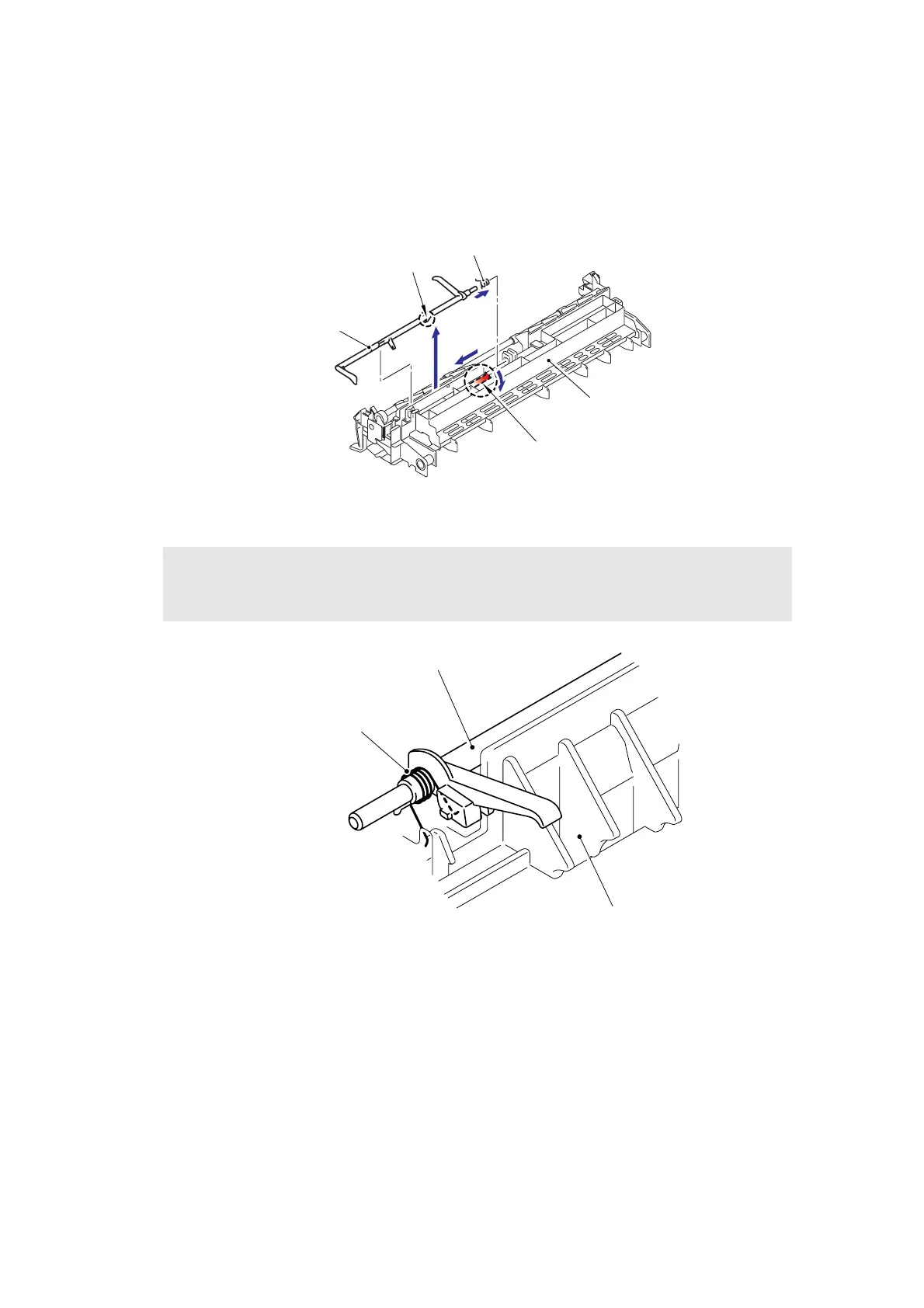

(5) Push the Hook of the Rear chute (indicated by the arrow 5a), and move the Eject
actuator to the direction of 5b.
(6) Lift up the Eject actuator to remove.
(7) Remove the Eject actuator spring.
Fig. 5-15
Fig. 5-16
Assembling Note:
• When assembling the Eject actuator spring, ensure that its direction is correct referring
to the figure below.
Eject actuator
Rib
Eject actuator spring
Hook
Rear chute
6
7
5b
5a5a
Eject actuator
Eject actuator spring
Rear chute
