(3) Remove the three cup B M3x10 Taptite screws.
(4) Remove the Front frame.

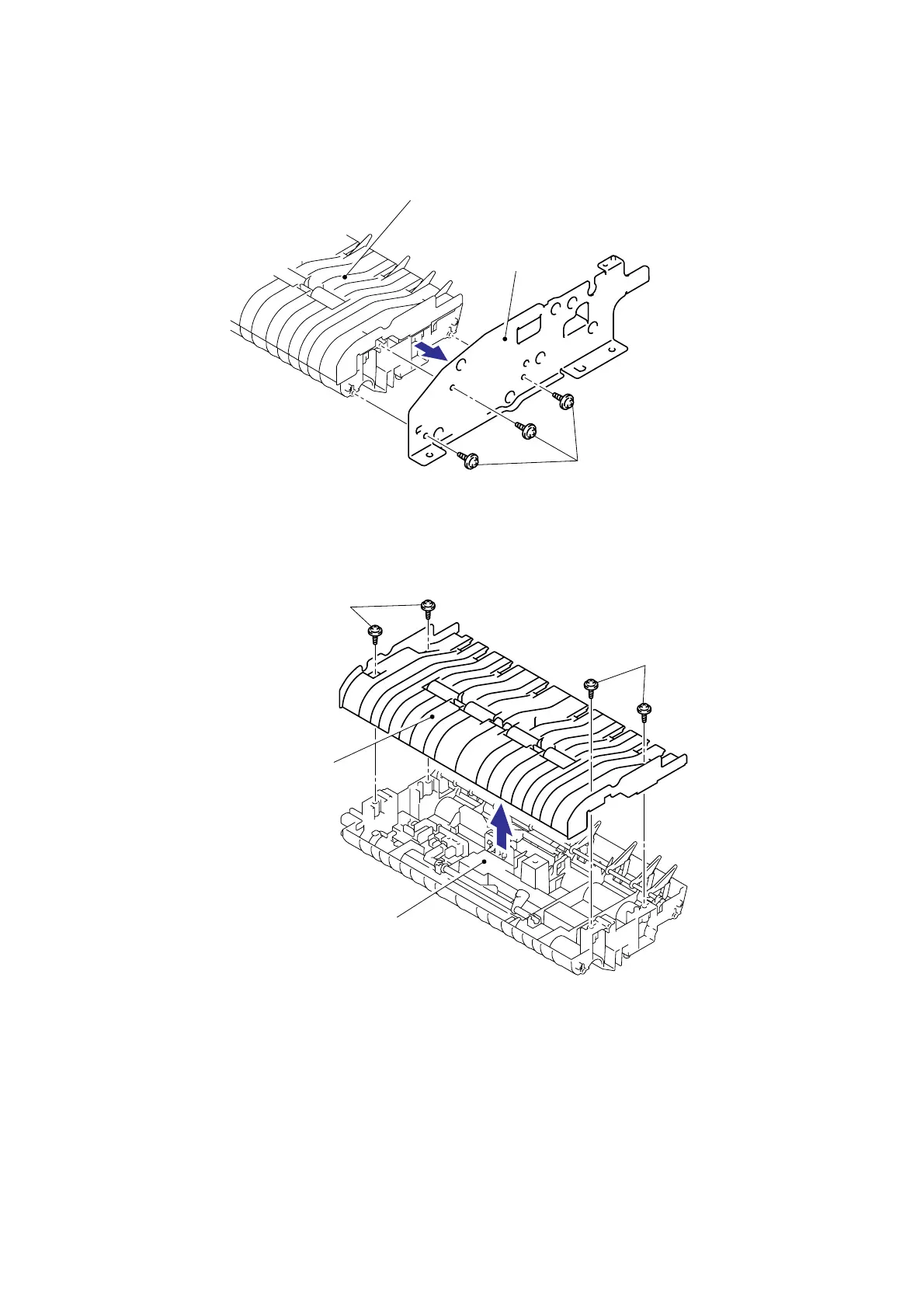

Fig. 5-83
(5) Remove the four cup B M3x10 Taptite screws.
(6) Remove the Upper main chute ASSY from the Lower main chute ASSY.
Fig. 5-84
Taptite cup B M3x10
Front frame
Main chute ASSY
<Front side>
Taptite cup B M3x10
Taptite cup B M3x10
Upper main chute ASSY
Lower main chute ASSY
