Brother DCP 8085DN

5-104
Confidential
(2) Remove the four cup S M3x6 Taptite screws and two Screws to remove the Main PCB.

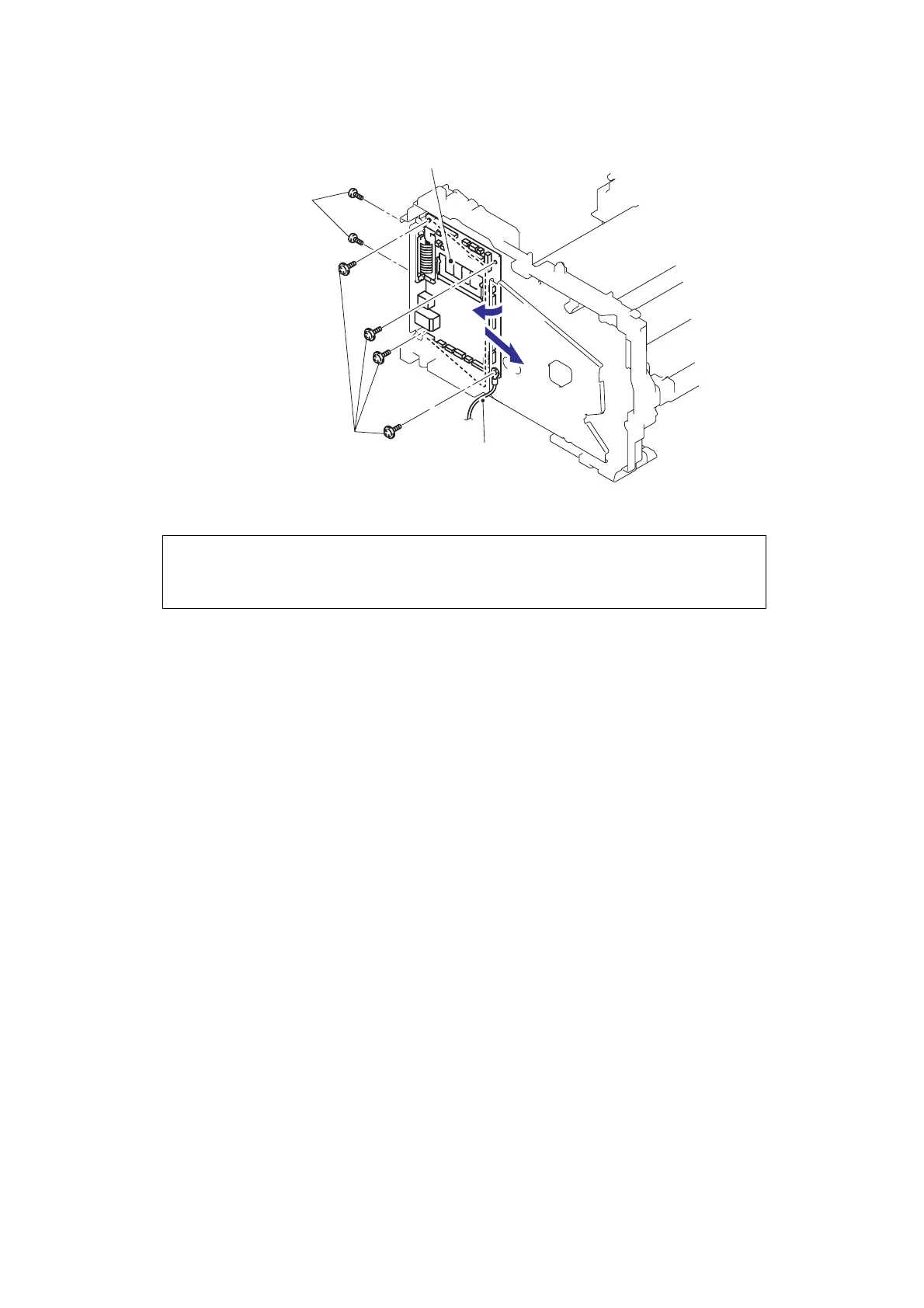

Fig. 5-132
Note:
There are procedures for disassembling Frame L after this procedure.
(9.87 FRAME L ASSY)
2a
2b
Main PCB
Taptite, cup S M3x6 SR
FG harness
Screws
