Brother DCP 8085DN

5-125
Confidential

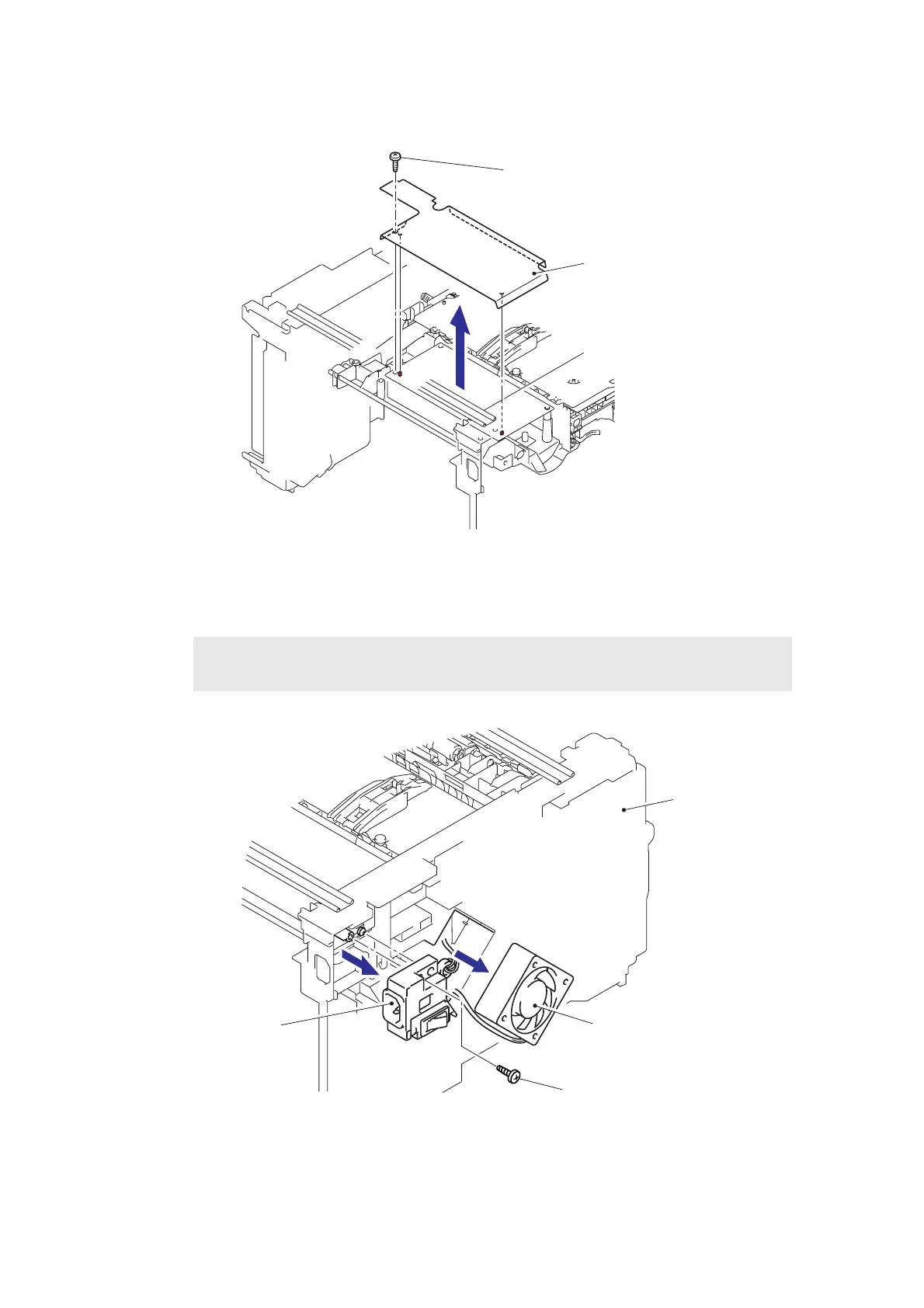

(5) Remove the two bind B M4x12 Taptite screws, and then remove the LV insulation sheet.
Fig. 5-167
(6) Remove the bind B M4x12 Taptite screw, and then remove the SW holder ASSY.
(7) Float the Fan motor 60 unit LV from the Frame R.
Fig. 5-168
Note:
• Do not remove the Fan motor 60 unit LV at the above step.
LV insulation sheet
Taptite, bind B M4x12
Frame R
Fan motor 60 unit LV
<Right side>
Taptite, bind B M4x12
SW holder ASSY
