Brother DCP 8085DN Service Manual

6-8
Confidential
■ EEPROM Customizing of Main PCB (Maintenance Mode: Code 74)
Refer to “4.18 EEPROM Customizing” in Chapter 7, and perform the EEPROM
Customizing.
For models in France and surrounding countries, Pan-Nordic, Oceania or Iberia,
implement the setting for Code 74 in Maintenance mode first. Then, implement more
detailed settings for Code 52.
■ EEPROM Parameter Initialization of Main PCB
(Maintenance Mode: Code 01)
Refer to “4.1 EEPROM Parameter Initialization” in Chapter 7, and perform the
EEPROM parameter Initialization of main PCB.
■ Operational Check of Control Panel Button (Maintenance Mode: Code 13)
Refer to “4.8 Operational Check of Control Panel PCB” in Chapter 7, and perform the
operational check of control panel PCB.
■ Operational Check of Sensors (Maintenance Mode: Code 32)
Refer to “4.10 Sensor Operational Check” in Chapter 7, and perform the operational
check of sensors.
■ Acquisition of White Level Data and Set the CCD Scanner Area
(Maintenance Mode: Code 55)
Refer to “4.16 Acquisition of White Level Data and CCD Scanner Area Setting” in
Chapter 7, and perform the acquisition of white level data and CCD scanner area
setting.
■ Setting the Serial Number
(1) Connect the computer to the machine with the USB cable.

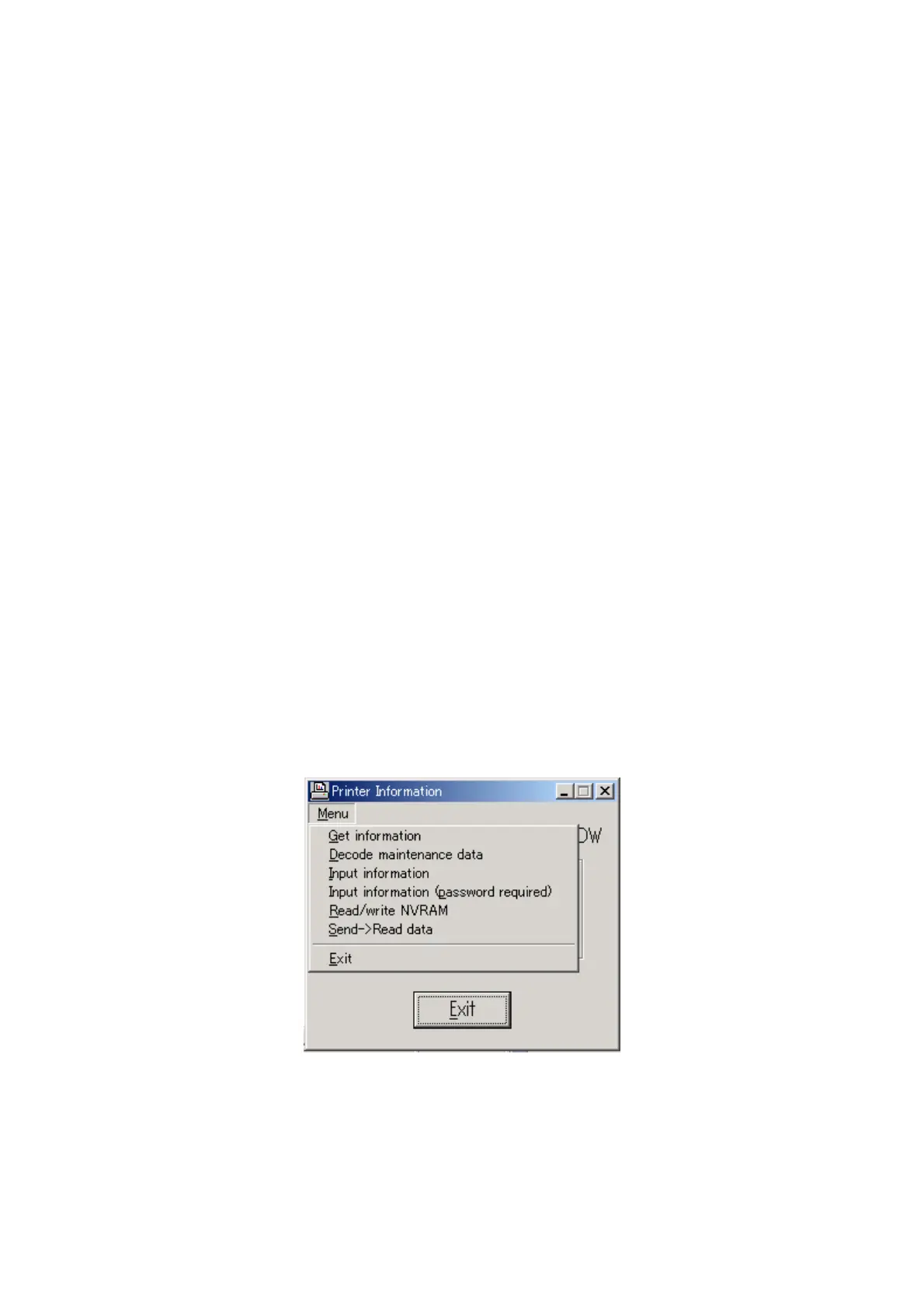

(2) Double-click the brmainte.exe file (maintenance utility) which has been copied in
the folder to start. Select “Input Information” from Menu. Select the applicable
model name.

Brother DCP 8085DN Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Economical printing	Yes
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Scan to	CIFS, E-mail, FTP, Image, OCR, USB
Scanner type	Flatbed scanner
Grayscale levels	256
Input color depth	48 bit
Output color depth	24 bit
Image formats supported	BMP, JPG
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	600 x 2400 DPI
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
N-in-1 copy function (N=)	2
Copy speed (black, normal quality, A4)	30 cpm
Total input capacity	250 sheets
Total output capacity	150 sheets
Auto document feeder (ADF) input capacity	50 sheets
Internal memory	64 MB
Maximum internal memory	576 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	56 dB
Display	TFT
Market positioning	Business
Maximum print size	216 x 356 mm
Media weight (tray 1)	60 - 105 g/m²
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Transparencies
Non-ISO print media sizes	Executive
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Dimensions (WxDxH)	531 x 451 x 475 mm
All-in-one functions	Copy, Scan
Compatible operating systems	Windows 2000 Professional, XP Home Edition, XP Professional Edition, XP professional x64 Edition, Vista Mac OS X 10.3.9 + Linux
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP Client and Server, TELNET Server, HTTP/HTTPS server, SSL/TLS, TFTP client and server, SMTP Client, APOP, POP before SMTP, SMTP-AUTH, SNMPv1/v2c/v3, ICMP, LLTD responder, Web Services (Print), CIFS Client, SNTP
Supported network protocols (IPv6)	NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP Client and Server, TELNET Server, HTTP/HTTPS server, SSL/TLS, TFTP client and server, SMTP Client, APOP, POP before SMTP, SMTP-AUTH, SNMPv1/v2c/v3, ICMPv6, LLTD responder, Web Services (Print), CIFS Client, SNTP
Standard interfaces	Ethernet, Parallel, USB 2.0
USB 2.0 ports quantity	1
Bundled software	Brother MFL-pro suite in Windows: BrotherControlCentre 3 Scansoft Paperport 11SE + OCR, Macintosh:BrotherControlCentre 2 Newsoft Presto! Page manager 7
Power consumption (standby)	85 W
Power consumption (PowerSave)	16 W
Power consumption (average operating)	680 W
Package weight	21800 g
Maximum duty cycle	30000 pages per month
Page description languages	BR-Script 3, Epson FX, IBM ProPrinter, PCL 6
