(2) Remove the Taptite bind B M4x12 screw, and then remove the Speaker cover from the
Joint cover.
(3) Release the Hook to remove the Speaker hold spring from the Joint cover.
(4) Remove the Speaker unit from the Joint cover.

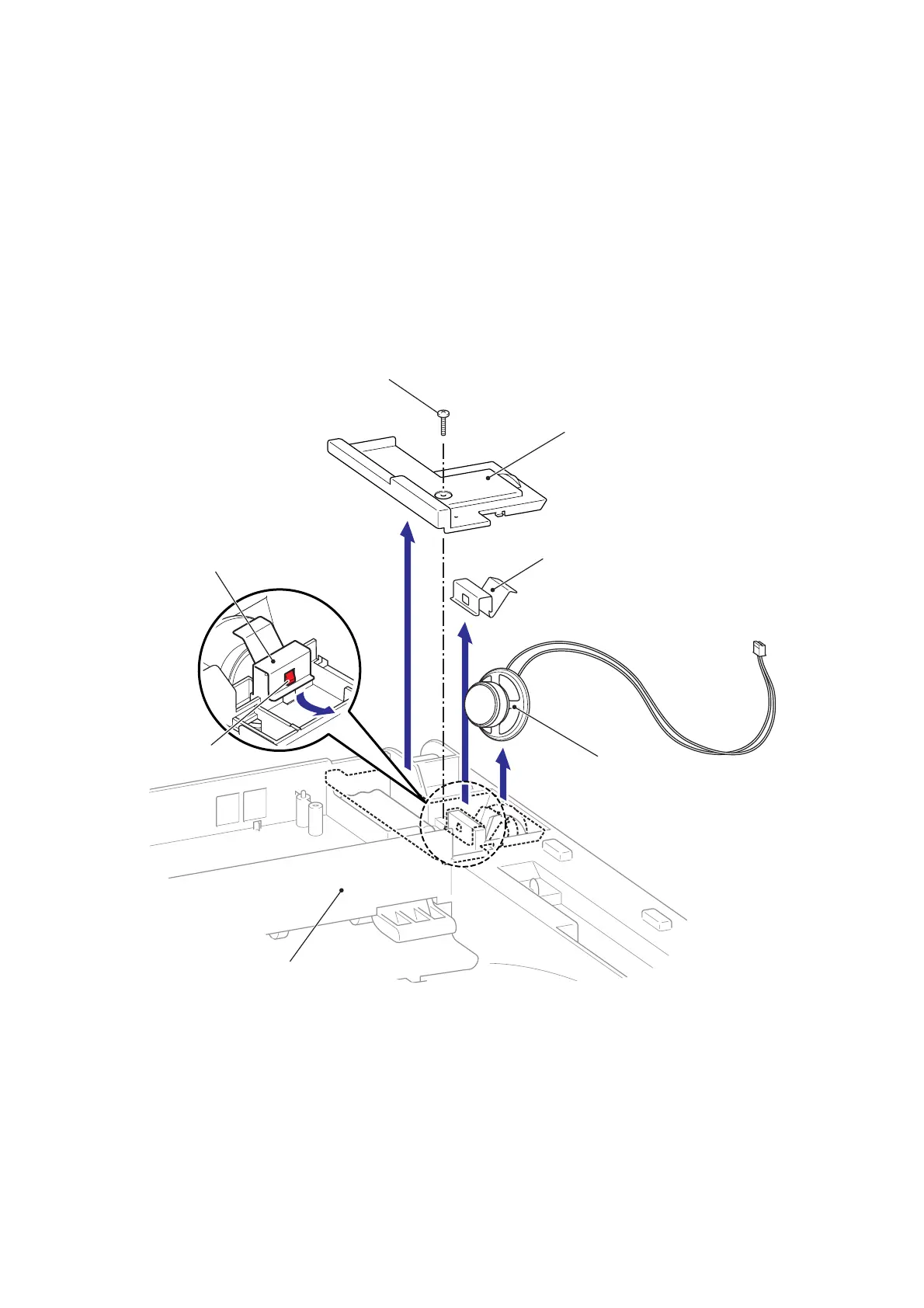

Fig. 3-59
Taptite bind B M4x12
Speaker cover
Speaker hold spring
Speaker hold spring
Hook
Speaker unit
Joint cover
2
4
3b
3a
3a
