Brother MFC-7450

3-84
Confidential

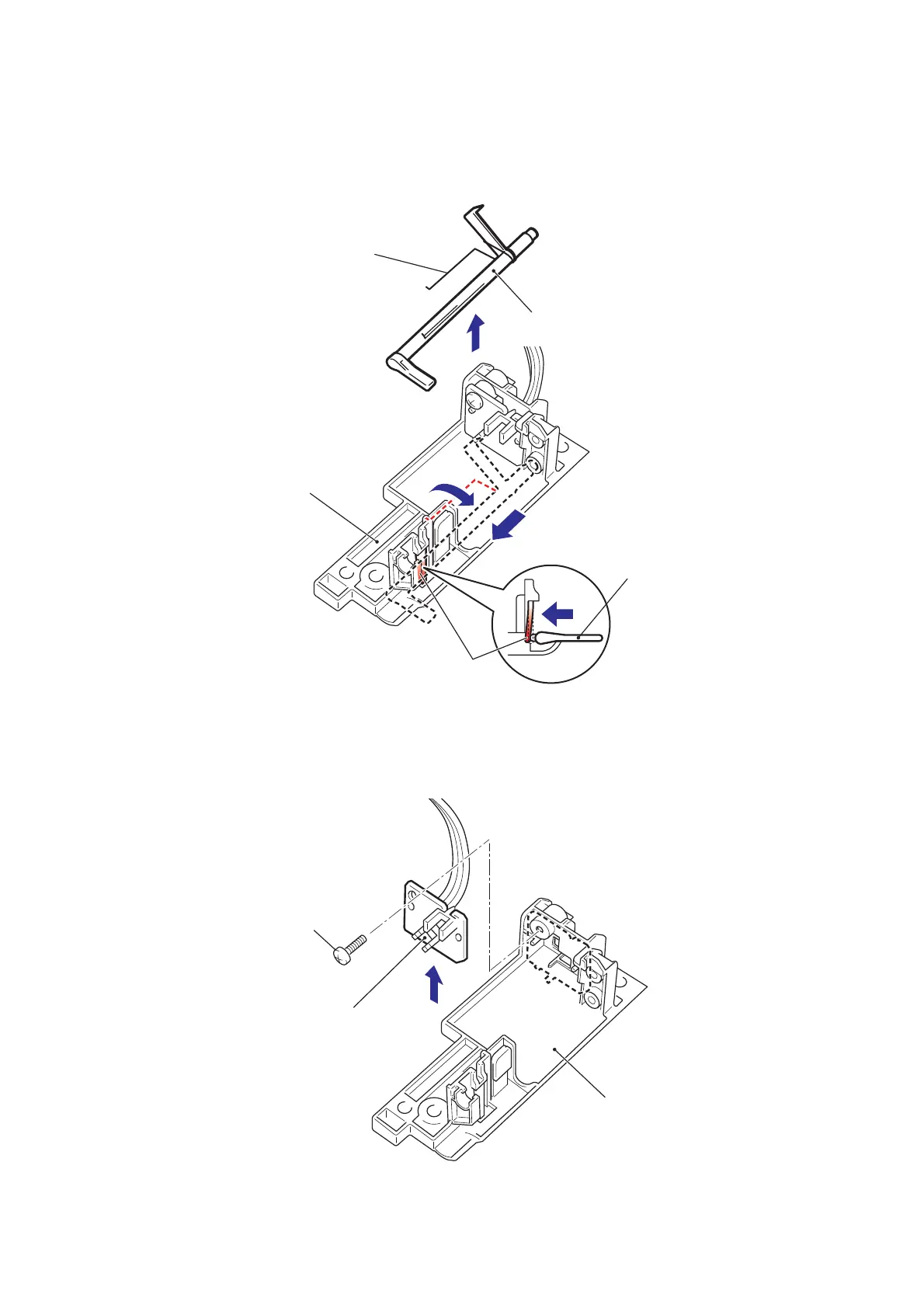

(6) Loosen the tip of the Edge actuator spring from the Actuator holder ASSY.
(7) Release the Hook and Slide the Edge actuator to remove the Edge actuator from the
Actuator holder ASSY.
Fig. 3-86
(8) Remove the Taptite bind B M3x10 screw, and then remove the Registration front sensor
PCB ASSY from the Actuator holder ASSY.
Fig. 3-87
Edge actuator
Edge actuator spring
Edge actuator
Actuator holder ASSY
Hook
7c
7b
7a
6
Taptite bind B M3x10
Registration front sensor
PCB ASSY
Actuator holder ASSY
