(3) Remove the Registration actuator spring from the Hook part.
(4) Turn the Registration front actuator at 90 degrees in the direction of counterclockwise as
the arrow 4 shown below.
(5) Slide the Registration front actuator to remove the Registration front actuator from the
Actuator holder ASSY.

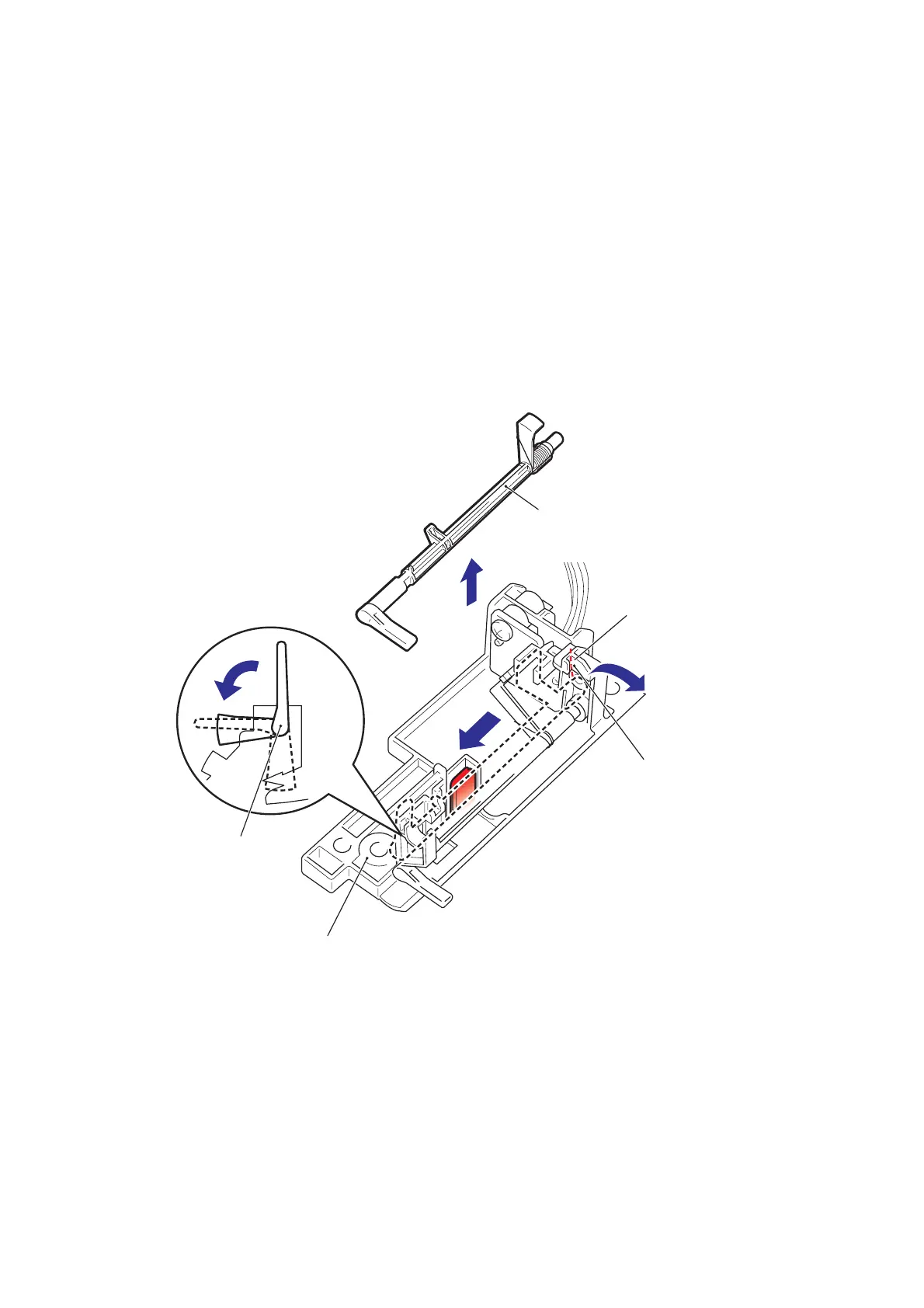

Fig. 3-85
5d
3
5a
4
3
Registration
front actuator
Hook part
Registration front actuator
Actuator holder ASSY
Registration actuator spring
