Brother MFC-7450

3-98
Confidential
(3) Remove the Main PCB sheet from the Main shield plate.
(4) Remove the three Taptite bind B M4x12 screws, and then remove the Main shield plate
from the Main body.

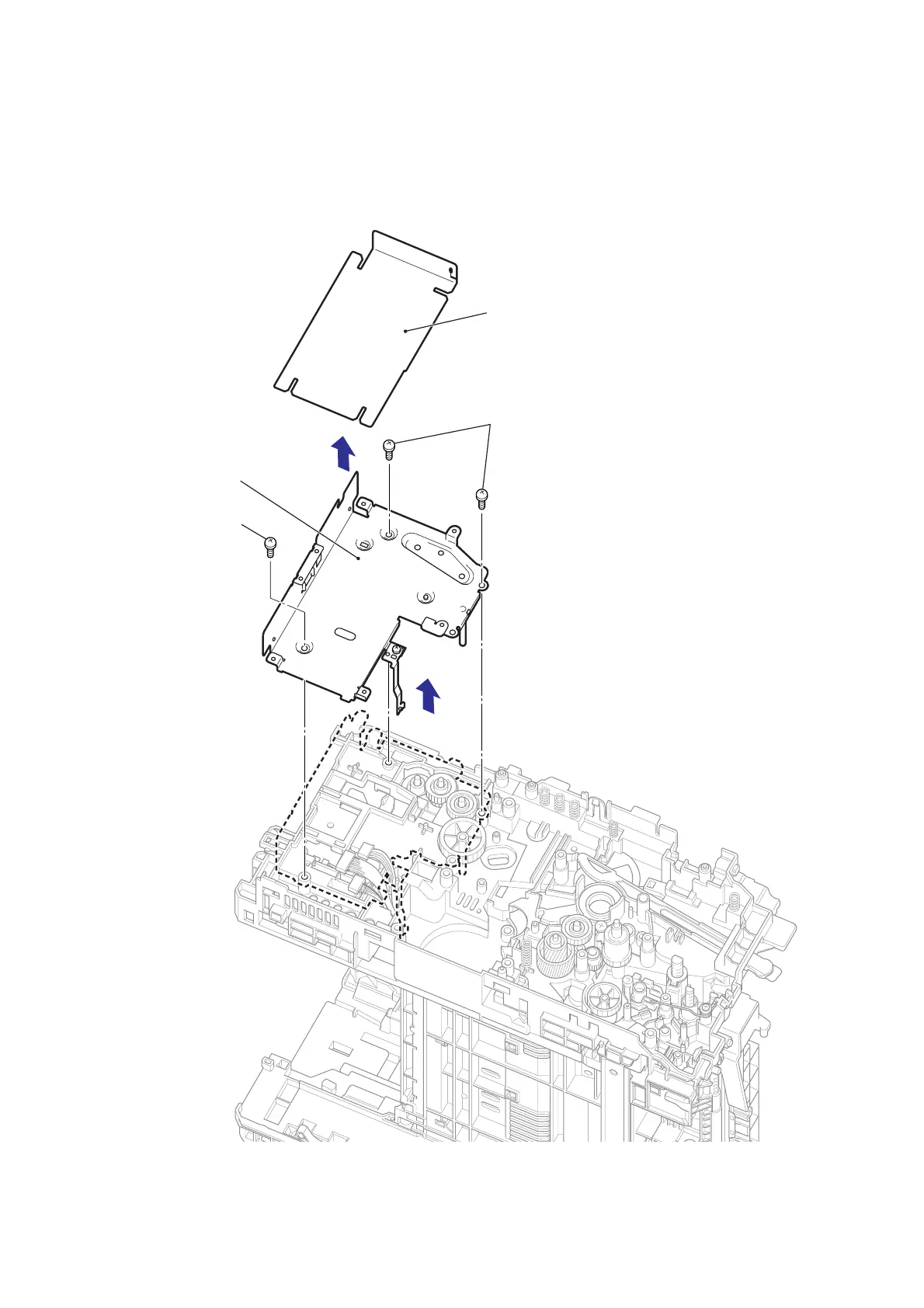

Fig. 3-102
Taptite bind B M4x12
Taptite bind B M4x12
Main shield plate
Main PCB sheet
3
4
<Left side><Left side>
