Brother MFC-7450

3-6
Confidential

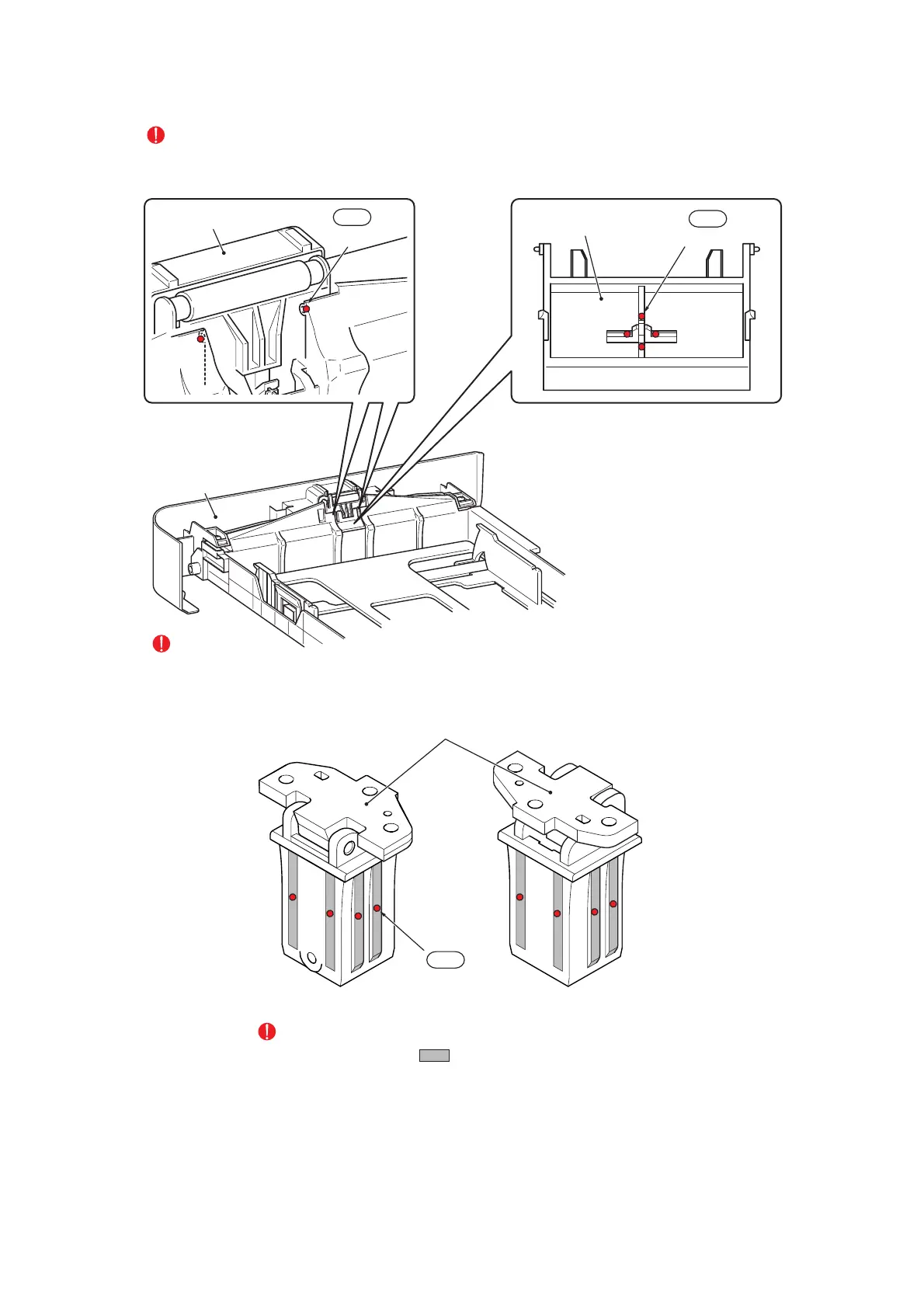

Fig. 3-3
Paper tray unit
Paper tray unit
Separation pad ASSY
CAUTION:
EM2
4 places
EM2
2 places
Be careful not to let lubricants touch the opposite side of the Separation pad ASSY.
EM2: MOLYKOTE EM-D110
(2mm dia. ball)
BD2: BDX313(A) (2mm dia. ball)
EM2: MOLYKOTE EM-D110
(2mm dia. ball)
CAUTION:
Be careful not to put lubricants on the
surface through which papers are fed.
Hinge ASSY L
BD2
8 places
CAUTION:
Apply to all surfaces of part by the brush.
