116
ELECTRICAL AND IGNITION
ELECTRIC STARTER SERVICING

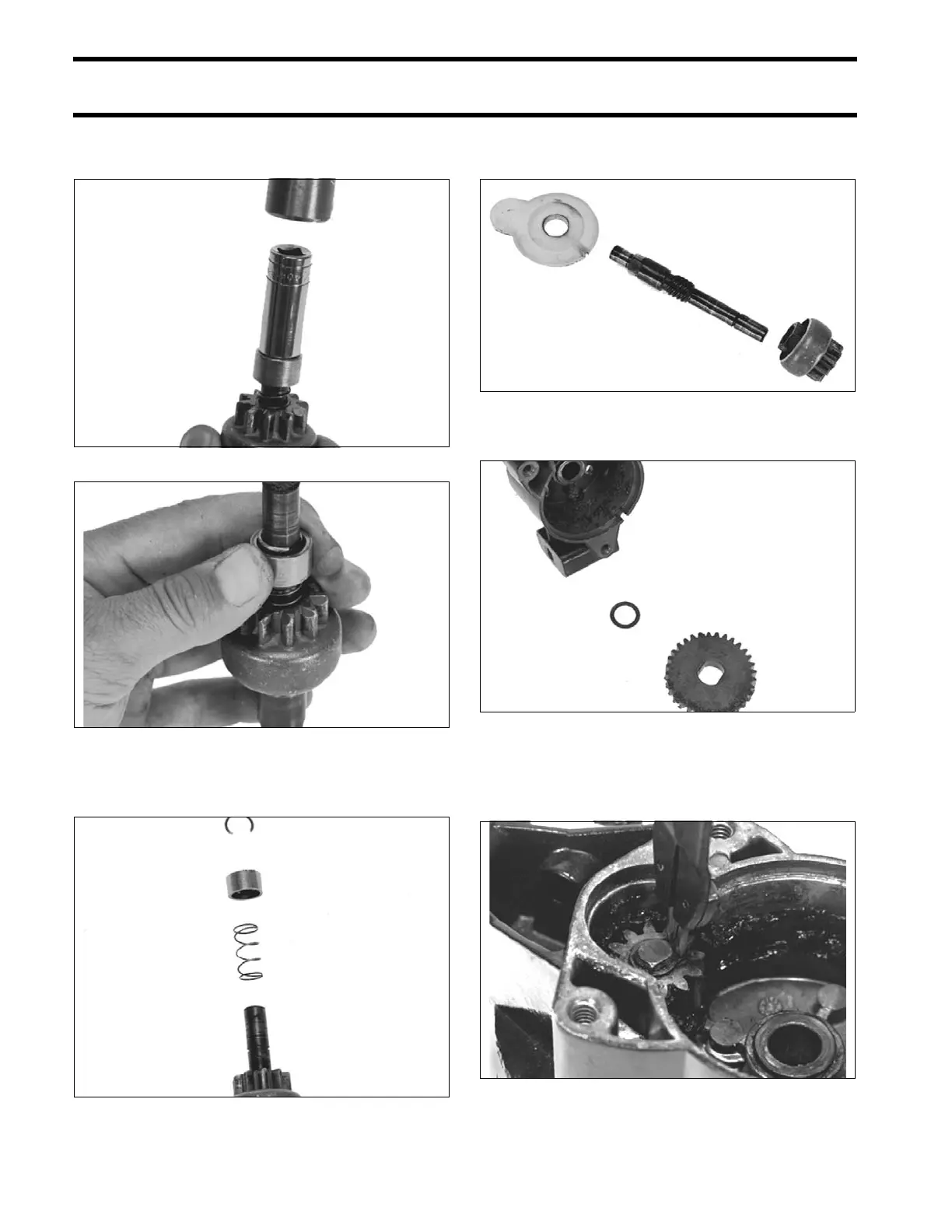

Hit the socket with a ma llet to lower th e sp acer
and expose the retaining ring under the spacer.
Remove t he ret aining ring, sp acer, an d spring
from pinion shaft.
Remove pin ion and plastic weathe r cover from
pinion shaft.
Remove the driven gear and thrust washer.
Using No. 2 external retaining ring pliers, re move
the retaining ring and drive gear from the armature
shaft.
30371
30360
30369
30368
30367
30366
