ELECTRICAL AND IGNITION
ELECTRIC STARTER SERVICING
6

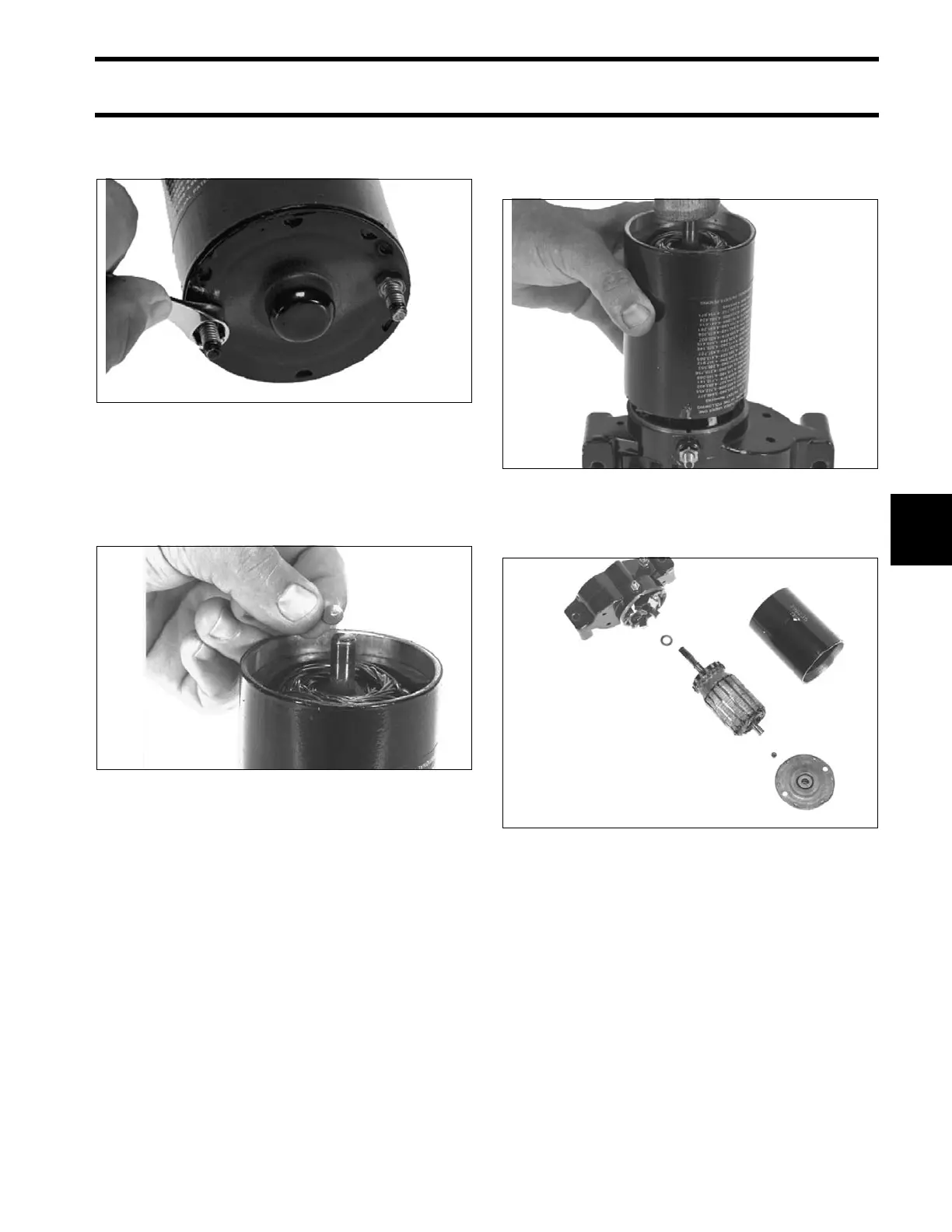

Remove the two thru-bolts. Mark the end ca p ori-
entation, and remove the cap.
Gently tap the starter frame with a rubber mallet to
loosen it.
Find the insulato r cap (end of the shaft or inside
the end cap). Inspect and replace, if necessary.
Note the alignment marks by the positive terminal
stud. Hold the armature in place, and slide the
frame away from the gear housing.
Slowly remove the armature and thru st washe r.
Do not lose the brush springs.
