Connect throttle linkage a nd throttle position sen-
sor connector.
IMPORTANT: DO NOT lu bricate TPS to thrott le
shaft surface.
Install oil/fuel pump bracket. Tighten screws 30 to
42 in. lbs. (3.5 to 4.7 N·m).
Position clamps as shown.
Refer to TPS CALIBRATION on p. 113.

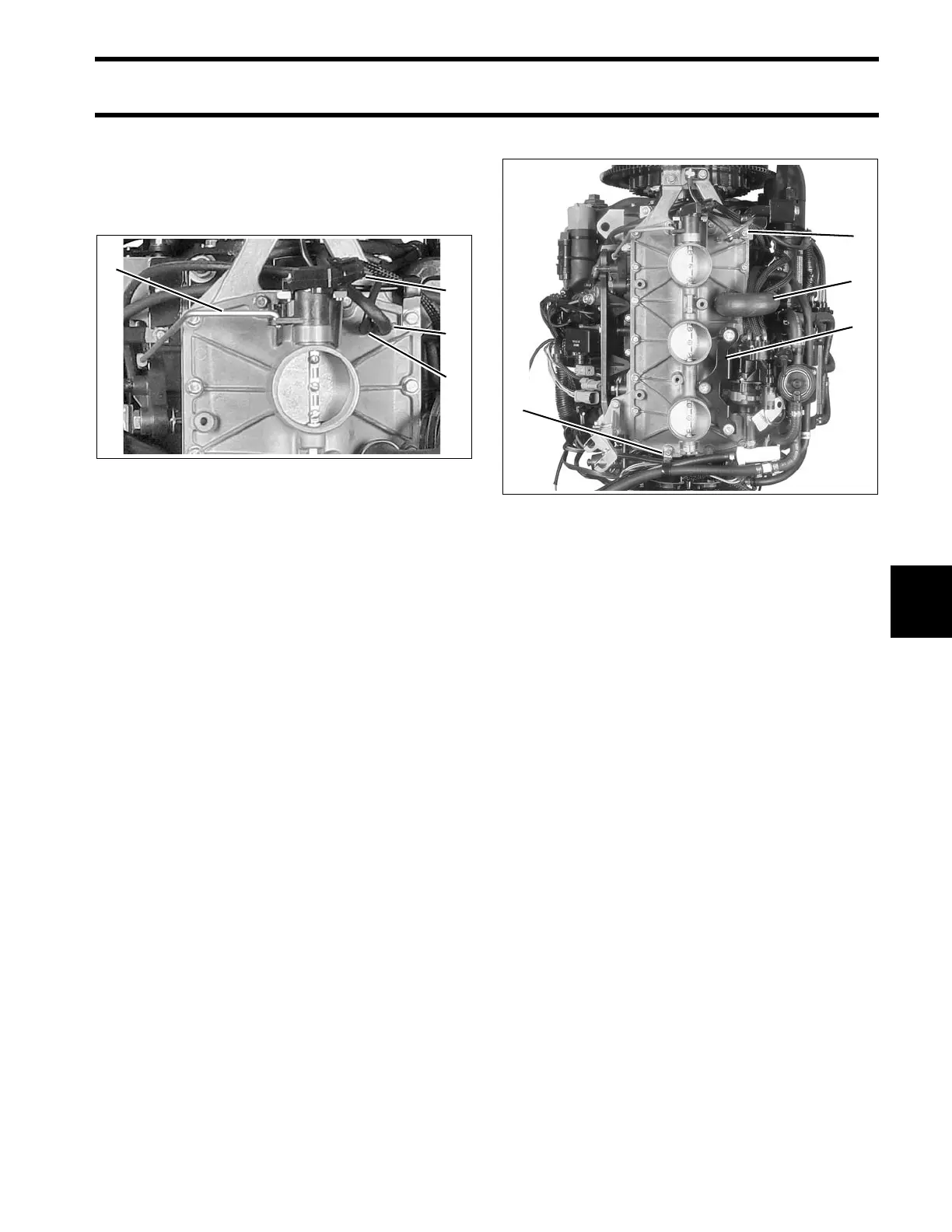

1. Throttle linkage
2. TPS electrical connector
3. Vapor separator vent hose
4. Oil recirculation hose
004248
1. Clamps
2. Idle air hose
3. Oil/fuel pump bracket
006990
