206
EVINRUDE ICON REMOTE CONTROL SYSTEM
ICON COMPONENT SERVICING

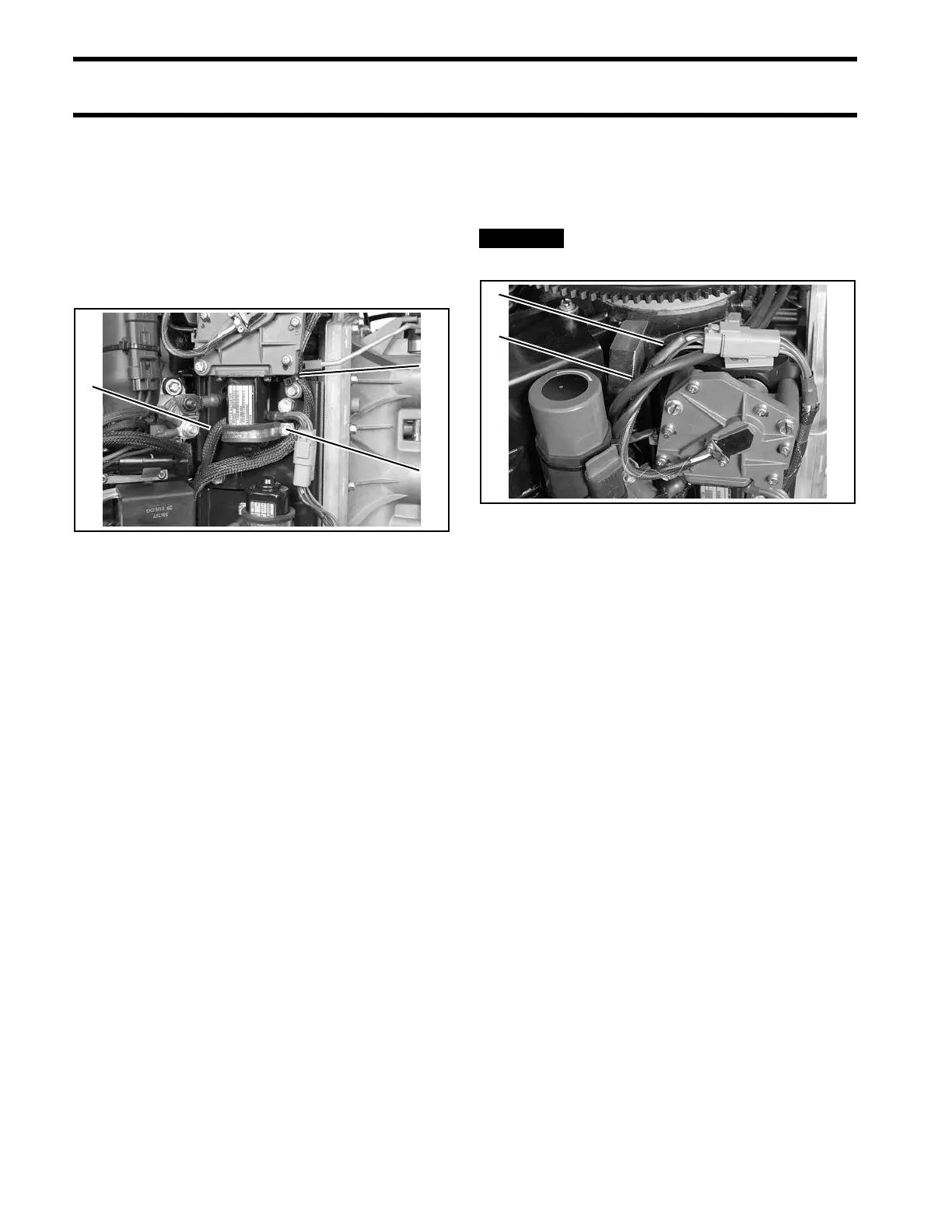

Secure ESM to throt tle actu ator harness with tie
strap, P/N 320107.
Route ESM to shift actuator harness behind throt-
tle actuator and over throttle actuator harness.
Place cla mp over actu ator motor. Install and
tighten screw to a t orque of 60 t o 84 in. lbs. (7 to
9.5 N·m).
Route the thrott le actua tor harness behin d and
over the oil recirculation hose as shown. Connect
the throttle actu ator harness. Att ach to clip on
mounting plate.
Make sure the oil recirculation hose
is not pinched during assembly.
IMPORTANT: Calibrate actu ator. Refer t o Cali-
brate Actuator Stroke on p. 207.
1. Tie strap
2. ESM to shift actuator harness
3. Clamp retaining screw
007498
1. Throttle actuator harness
2. Oil recirculation hose
007497
