BT Micro - ADSL Mode - ADSL 2 and ADSL 2

BT Micro Owner’s Manual
82

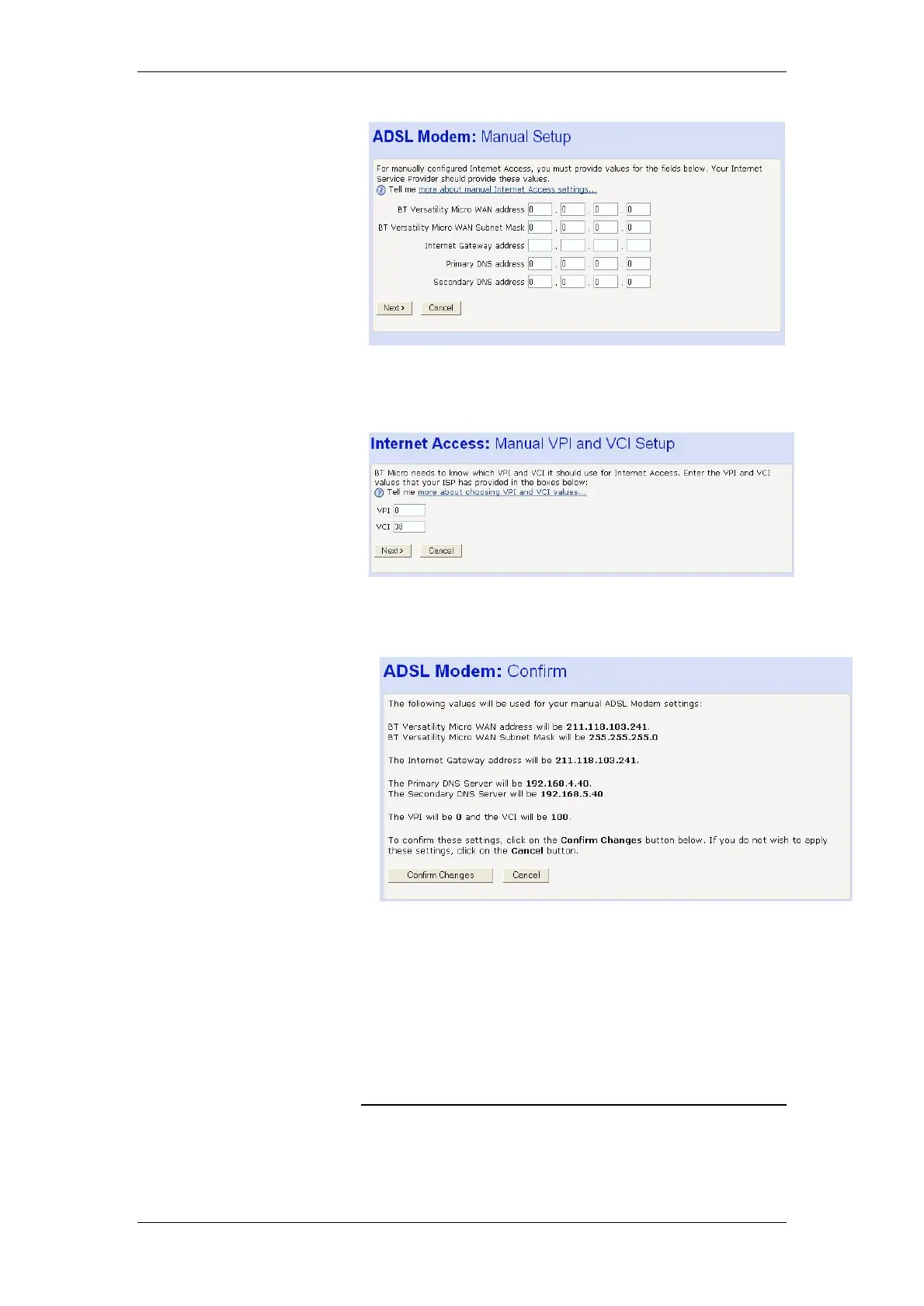

2. Click in each box and type the relevant address information
provided by your ISP. Click Next>. The following page is
displayed:
Enter the VPI and VCI values supplied by your ISP.
3. Click Next>. The following page is displayed:
This page confirms the address settings that you have manually
configured (the values displayed above are for example
purposes only). If you selected the Manual option at step 5, the
VPI and VCI values that you entered are also displayed on this
page.
4. If you are happy with your settings, click Confirm Changes.
The Internet Access page is displayed and your
configuration is complete.
ADSL Mode – ADSL 2 and ADSL 2+
The default setting for the ADSL mode is set at Multimode. This
will automatically configure the ADSL line to the correct mode
for an ADSL service. However if the service is providing ADSL2
